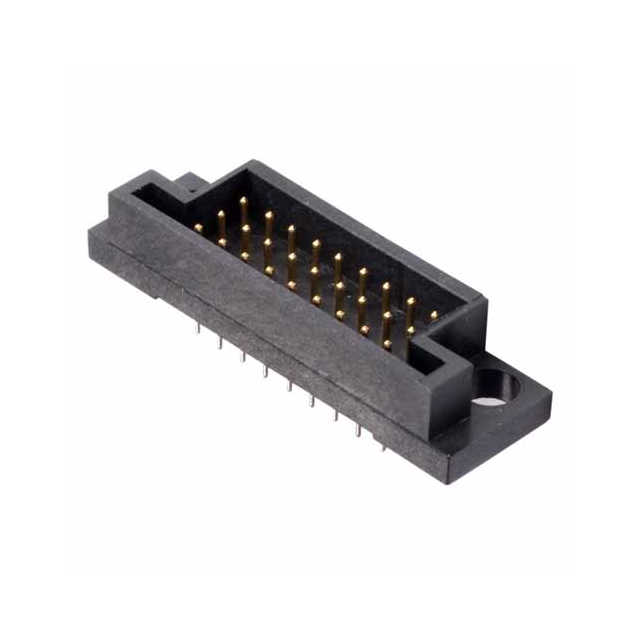

M80-7026342

Description：CONN HEADER VERT 63POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray

SKU:4d9047e65e6d Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 63POS 2MM
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：63
Number of Rows：3
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.244" (6.20mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：Mating Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-7026342

Overview

The Harwin M80-7026342 is a vertical male header from the Datamate M80 series, designed for high-current power-to-board applications. It features a 63-position configuration with a 2mm pitch and phosphor bronze contacts gold-plated for reliable conductivity. The connector utilizes a polyamide (PA) housing rated UL94 V-0 for fire resistance and operates within a temperature range of -55°C to +125°C. Rated at 3A current and 360V voltage, it employs through-hole solder termination for secure board mounting.

Feature Summary

High-current capability suitable for demanding power distribution tasks
Robust UL94 V-0 polyamide housing ensures thermal stability
Gold-plated phosphor bronze contacts provide durable electrical performance

Applications

Industrial control systems requiring robust power connections
Automotive electronics and heavy-duty machinery interfaces
Power supply units and energy distribution modules

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm jack-screw compatibility and exact pin count. Ensure the selected variant matches the required RoHS compliance status for your assembly. Cross-reference the datasheet for precise mating force and stacking height requirements before finalizing procurement orders.

Selection Notes

Select this component when high current carrying capacity and strict environmental ratings are necessary. The 2mm pitch allows for dense packing while maintaining adequate spacing for high-voltage isolation. Consider the vertical orientation for direct board stacking or cable attachment needs in compact enclosures.

Part Context

This part belongs to the Datamate M80 family, which specializes in rugged interconnect solutions for harsh environments. The series is engineered for superior mechanical strength and electrical reliability compared to standard connectors. It supports various termination options and locking mechanisms to suit diverse industrial integration challenges.
