M80-7036322

Overview

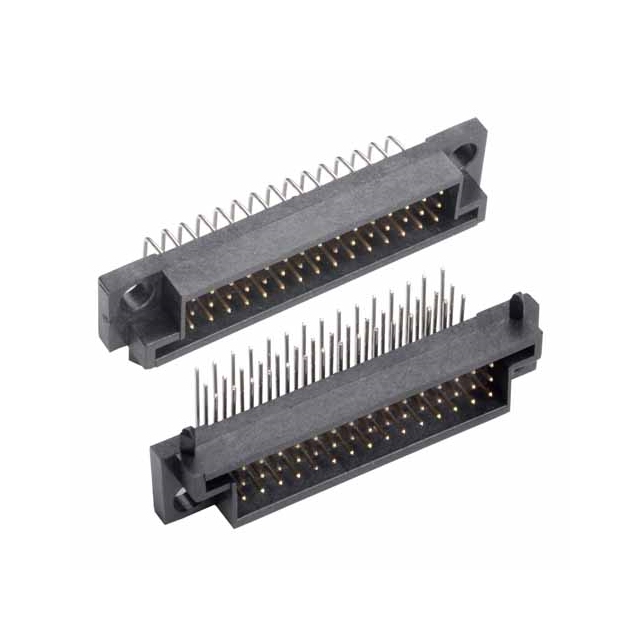

The Harwin M80-7036322 is a Datamate J-Tek series header connector designed for board-to-board or cable applications. It features a 63-position configuration with male pins arranged in a right-angle orientation. The connector utilizes a 2.00 mm pitch and supports through-hole solder termination. Constructed with phosphor bronze contacts gold-plated for conductivity, the housing is made of polyamide (PA). It operates within a temperature range of -55°C to +125°C and is rated for 3 A current and 360 V voltage.

Feature Summary

• Right-angle design facilitates compact PCB layout integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Polyamide housing provides thermal stability and mechanical strength

Applications

• High-reliability electronic assemblies
• Board-to-board interconnections
• Cable-to-board connections

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, housing material, and termination style match project requirements. Ensure compatibility with mating female connectors from the same Datamate J-Tek series. Confirm RoHS compliance status if required by regulatory standards.

Selection Notes

Select this component when a high-density 63-position connection is required in a constrained space due to its right-angle form factor. Consider the 2.00 mm pitch and 360 V rating for appropriate electrical isolation. Validate that the through-hole soldering process aligns with the manufacturing capabilities of the target PCB assembly line.

Part Context

This part belongs to the Harwin Datamate M80/J-Tek family, known for high-reliability interconnect solutions. The M80-7036322 specifically addresses needs for robust power and signal distribution in industrial or aerospace environments where vibration resistance and stable electrical performance are critical over extended temperature ranges.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin Datamate headers only if pin count, pitch, and orientation match exactly.
