Product Detailed Parameters
- Description：CONN RCPT 45POS 0.079 GOLD PCB
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：45
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.247" (6.28mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

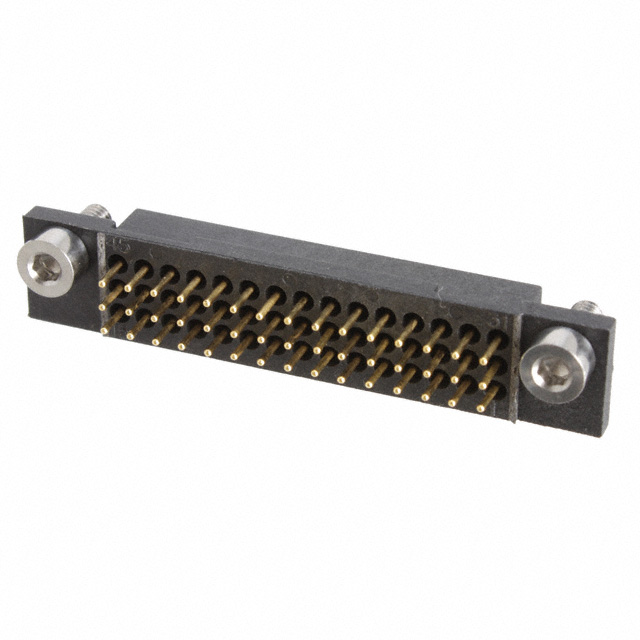

The M80-7044505 is a Datamate M80 series female receptacle connector featuring 45 positions arranged in a triple-row configuration. It utilizes a 2.00mm (0.079 inch) pitch and is designed for vertical through-board installation with 3mm solder pin terminations. The contacts are made from phosphor bronze with a gold finish, housed in a black polyamide body. This component supports high-density interconnect applications requiring robust mechanical stability.
Feature Summary
- Triple-row design enabling high contact density within a compact footprint
- Vertical through-board mounting orientation for direct PCB integration
- Gold-plated phosphor bronze contacts ensuring reliable signal transmission
- Polyamide housing material providing structural integrity and thermal resistance
Applications
- High-density electronic interconnect systems
- Industrial control panel wiring
- Automotive electronics modules
- Telecommunications equipment backplanes
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm termination style and plating specifications. Ensure compatibility with mating male connectors from the same Datamate M80 family. Confirm that the vertical through-board form factor aligns with the target PCB layout requirements before finalizing procurement orders.
Selection Notes
Select this component when a high-pin-count female connector is required for vertical board mounting. The triple-row arrangement maximizes I/O density compared to dual-row alternatives. Ensure the application environment is compatible with the polyamide housing and phosphor bronze contact materials specified for this series.
Part Context
This part belongs to the Datamate M80 series, which is engineered for demanding industrial and automotive environments. The M80 line distinguishes itself with enhanced mechanical locking features and higher current capabilities compared to standard Datamate variants. It serves as a critical interface component in systems requiring durable, high-reliability connections.
Replacement Considerations
- M80-7014542
FAQ
What is the contact material for the M80-7044505?
The contacts are manufactured from phosphor bronze with a gold finish.
Does this connector support right-angle mounting?
No, the M80-7044505 is designed specifically for vertical straight through-board installation.
