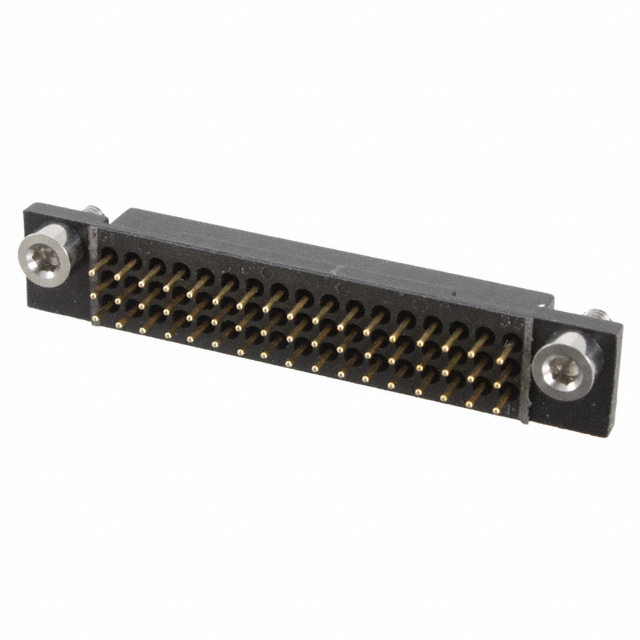

M80-7045105

$37.94

Description：CONN RCPT 51POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray

SKU:2db8896cb689 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 51POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tray
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：51
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：3
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.247" (6.28mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：Jackscrews, Mating Flange, Mounting Flange
Current Rating (Amps)：-
Voltage Rating：-

Download product information

M80-7045105

Overview

The M80-7045105 is a Datamate J-Tek series female receptacle connector manufactured by Harwin Inc. It features a triple-row vertical through-board configuration with 51 contacts arranged in a 17x3 matrix. The component utilizes a 2.00mm pitch and employs solder pin termination for secure PCB mounting. Designed for high-reliability applications, it supports a rated current of 3A and operates within a temperature range of -55°C to +125°C. The housing is constructed from black Polyphenylene Sulfide (PPS) with glass fiber reinforcement, ensuring UL94 V-0 flammability rating.

Feature Summary

Triple-row floating jackscrew locking mechanism for secure mating
Lightweight metal backshell providing 360-degree EMI/RFI shielding
High-density 51-contact layout optimized for space-constrained designs
Robust PPS insulation material suitable for harsh industrial environments

Applications

Industrial automation control systems
Aerospace and avionics instrumentation
Military defense communication equipment
Medical diagnostic devices requiring reliable signal integrity

Procurement Notes

Verify the specific datasheet revision when sourcing to ensure compatibility with mating connectors and tooling requirements. Confirm that the selected variant includes the necessary metal backshell for electromagnetic interference protection if required by the system design. Cross-reference the contact count and row configuration to prevent installation errors during assembly.

Selection Notes

Select this component when a high-density vertical interconnect is required alongside robust environmental shielding. The triple-row format maximizes contact density within a minimal footprint. Ensure the application environment falls within the specified thermal limits and that the solder termination method aligns with the manufacturing process capabilities.

Part Context

This part belongs to the Datamate J-Tek family, known for its compact size and high reliability in demanding sectors. The M80 series specifically addresses needs for durable, shielded connections in aerospace and military contexts. The vertical orientation facilitates direct board-to-board or cable-to-board integration where space efficiency is critical.
