Product Detailed Parameters

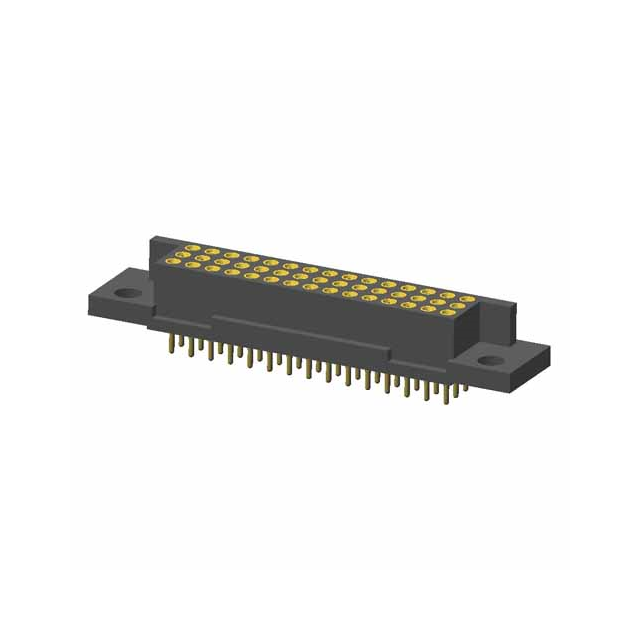

- Description：CONN RCPT 63POS 0.079 GOLD PCB
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：63
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：-
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.247" (6.28mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Mating Flange
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview
The Harwin M80-7076301 is a 63-position vertical female connector from the Datamate series. It features a 2mm pitch and is designed for power-to-board applications. The component utilizes crimp termination for wire connections and includes jackscrews for secure mounting. It operates within a temperature range of -55°C to +125°C, offering resistance to shock, vibration, and bump environments.
Feature Summary
- Provides high mechanical stability with 100G shock and 40G bump resistance capabilities.
- Features jackscrew locking mechanisms to ensure secure mating in demanding environments.
- Supports operation in extreme temperatures ranging from -55°C to +125°C.
Applications
- Industrial control systems requiring robust interconnects
- Automotive electronics subject to vibration and shock
- Military equipment needing high reliability connectors
Procurement Notes
Verify the specific contact plating and shell material configuration against the official datasheet before ordering. Confirm that the required jackscrew length matches the assembly depth. Ensure the crimp tool compatibility aligns with the specified wire gauge to guarantee proper termination integrity.
Selection Notes
Select this model when high-density 63-pin connectivity is required in vertical configurations. Consider the Datamate Mix-Tek or J-Tek variants if different pin counts or termination styles are needed. Evaluate the environmental sealing requirements against the standard open-frame design of this specific part number.
Part Context
This component belongs to the Harwin Datamate family, known for modular connectivity solutions. The M80 series specifically targets rugged applications where standard connectors may fail. It complements male headers and cable assemblies within the same ecosystem to form complete interconnect systems.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific 63-way configuration. Alternative selection requires evaluating other Datamate models with matching pin counts and mechanical constraints.
FAQ
What is the operating temperature range for this connector?
The connector supports operation from -55°C to +125°C.
Does this model include jackscrews?
Yes, the M80-7076301 includes jackscrews for secure mounting.
