M80-7531242

Overview

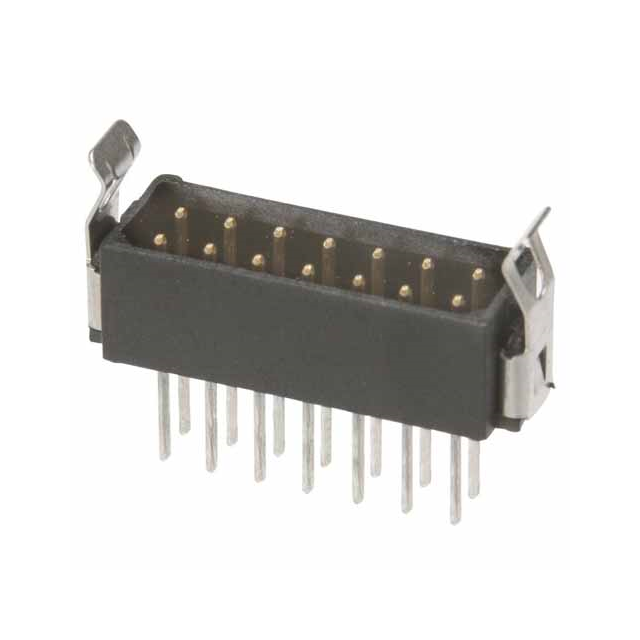

The M80-7531242 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a right-angle through-hole mounting style with five positions and a 2.00mm pitch. The connector utilizes phosphor bronze contacts with gold plating for mating surfaces and tin plating for tails, housed in black PPS insulation rated UL94 V-0. It operates within a temperature range of -55°C to 125°C, supports a current rating of 2.2A per contact, and withstands voltages up to 120V.

Feature Summary

• Right-angle design facilitates compact board-to-board or cable connections
• Four-wall shielding provides robust mechanical protection and alignment
• Integrated stress relief clamp ensures secure cable retention

Applications

• Industrial control systems requiring reliable interconnects
• Consumer electronics with space-constrained layouts
• Automotive electronic modules needing vibration resistance

Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count and termination type. Ensure compatibility with mating sockets from the same Datamate L-Tek family. Confirm that the right-angle orientation meets PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, right-angle connection is required for five-position circuits. The 2.00mm pitch allows for dense routing while maintaining adequate spacing. Consider the 2.2A current rating and 120V voltage limit to ensure suitability for the target application's electrical demands.

Part Context

This part belongs to the Datamate L-Tek family, known for its high-density interconnect capabilities. The M80-7531242 specifically addresses applications needing angled entry points. Its construction emphasizes durability and consistent performance across various environmental conditions typical in modern electronic assemblies.

Replacement Considerations

Direct substitutes must match the 5-position count, 2.00mm pitch, and right-angle form factor. Verify that any alternative maintains the same contact material specifications and housing flammability rating to ensure equivalent safety and performance standards.
