Product Detailed Parameters
- Description：DATAMATE L-TEK DIL MALE VERTICAL
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：120V
Download product information
Overview

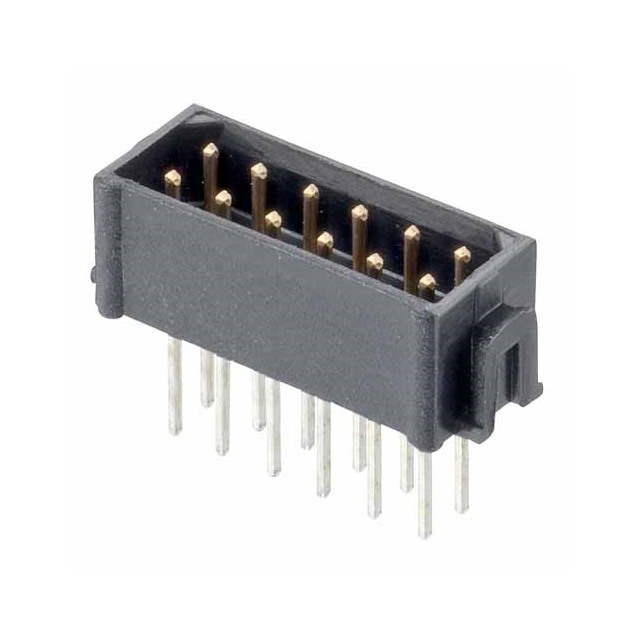

The Harwin M80-7541022 is a Datamate L-Tek male header featuring 10 positions in a dual in-line configuration. It utilizes a 2 mm pitch and is designed for vertical through-board solder termination. The connector employs four-finger beryllium copper contacts with gold plating to ensure signal integrity. Rated for 3 A current, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black polyamide material compliant with UL 94 V-0 flammability standards.
Feature Summary
- Four-finger beryllium copper contact design ensures connection integrity under harsh conditions.
- Gold-plated contacts provide reliable electrical performance.
- Vertical orientation facilitates compact board-to-board or cable interconnects.
Applications
- High-end industrial equipment
- Military applications
- Aerospace systems
Procurement Notes
Verify the specific datasheet version for the M80-7541022 to confirm RoHS compliance status and REACH SVHC details, as these attributes are listed as variable or requiring detailed inspection in official documentation. Ensure the selected variant matches the required stacking height and pin configuration for the target PCB layout.
Selection Notes
Select this component when a vertical male header with a 2 mm pitch is required for high-reliability environments. The Datamate L-Tek series is suitable for applications demanding durability against shock and vibration. Confirm that the 3 A current rating and 800 V voltage rating align with the system's electrical requirements.
Part Context
This part belongs to the Datamate L-Tek family, which is engineered for safety-critical applications involving high loads, shock, and acceleration. The series is characterized by its robustness and ability to withstand high mating cycles without performance degradation, making it distinct from standard commercial connectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Datamate L-Tek variants only if they share identical mechanical dimensions and electrical ratings.
FAQ
What is the contact material used in the M80-7541022?
The contacts are made of beryllium copper with a gold finish.
Is the M80-7541022 latched or unlatched?
The M80-7541022 is an unlatched connector.
