M80-7720242R

Overview

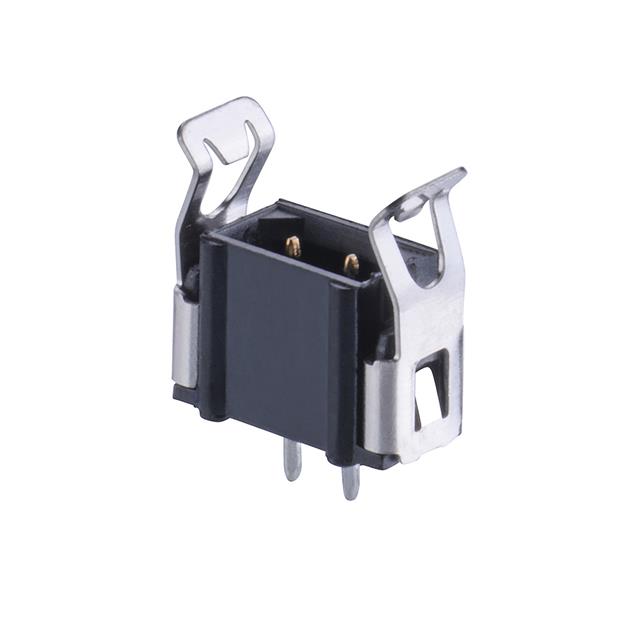

The Harwin M80-7720242R is a Datamate J-Tek series wire-to-board connector header. It features a 2-position, single-row configuration with a 2 mm pitch. The component utilizes male pin contacts made of phosphor bronze with gold plating for reliable signal transmission. Designed for through-hole mounting, it employs solder termination to secure the connection to the printed circuit board. The housing is constructed from black polyphenylene sulfide (PPS), offering thermal stability and mechanical durability. This straight-style connector supports a maximum operating temperature of +125°C and a minimum of -55°C, ensuring functionality across a wide environmental range.

Feature Summary

• Datamate J-Tek system compatibility ensures robust interlocking and secure mating.
• Gold-plated phosphor bronze contacts provide low resistance and corrosion resistance.
• Polyphenylene sulfide housing offers high thermal resistance and flame retardancy.
• Through-hole solder termination ensures stable mechanical attachment to PCBs.

Applications

• Compact electronic assemblies requiring wire-to-board connections
• Industrial control systems utilizing Datamate J-Tek interfaces
• Consumer electronics with space-constrained power or signal routing

Procurement Notes

Verify the specific suffix 'R' against the manufacturer's official datasheet to confirm reel packaging or specific variant attributes. Ensure the required contact count matches the 2-position specification. Cross-reference the RoHS compliance status directly with the current product documentation before procurement to meet regulatory requirements.

Selection Notes

Select this component when a low-profile, two-wire interface is required within the Datamate ecosystem. The 2 mm pitch allows for dense packing in compact designs. Verify that the through-hole mounting style aligns with the target PCB assembly process and that the 3 A current rating meets the application's electrical load requirements.

Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability. The M80 prefix indicates the standard connector series. As a header solution, it mates with corresponding sockets to form complete interconnect systems. The specific model defines the position count, row configuration, and termination method unique to this assembly requirement.

Replacement Considerations

M80-7720242
