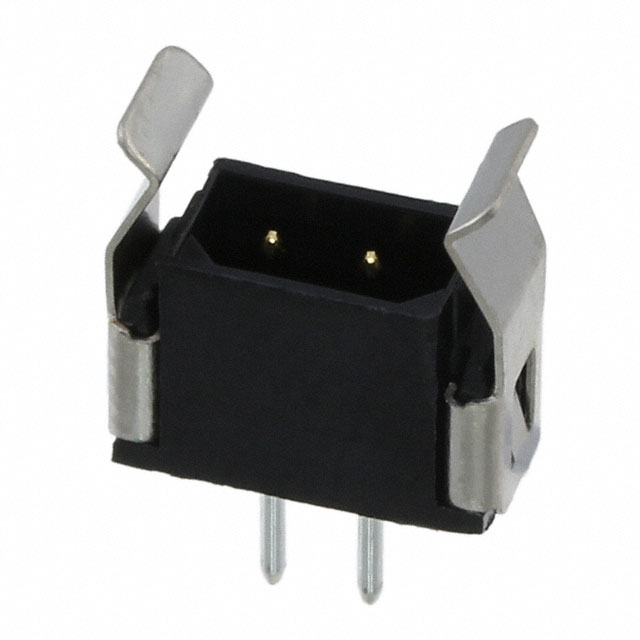

M80-8050222

Description：CONN HEADER VERT 2POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:dcbfbbe861e2 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 2POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8050222

Overview

The M80-8050222 is a Datamate J-Tek series power connector designed for board-to-board or cable applications. It features a dual in-line (DIL) male configuration with two positions and a 2 mm pitch. The connector utilizes vertical through-hole mounting with solder pin termination. Constructed with phosphor bronze contacts gold-plated for reliability, the housing is made of black polyphenylene sulfide (PPS). It supports a current rating of 3 A and operates within a temperature range of -55°C to +125°C.

Feature Summary

Friction latch mechanism for secure mating
Gold-plated phosphor bronze contacts
Polyphenylene sulfide (PPS) housing material

Applications

Industrial control systems
Telecommunications equipment
Automotive electronics

Procurement Notes

Verify that the specific part number matches the required friction latch style and contact plating. Confirm the vendor provides official Harwin documentation to ensure compliance with RoHS standards and material specifications. Cross-reference the datasheet for accurate mechanical dimensions and mating partner compatibility before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-reliability power connection is required. The 2 mm pitch allows for dense circuit layouts. Ensure the application environment stays within the specified thermal limits. Verify that the mating receptacle corresponds to the female counterpart in the same Datamate J-Tek series to guarantee proper alignment and electrical continuity.

Part Context

This component belongs to the Harwin Datamate J-Tek family, known for robust performance in demanding environments. The M80-8050222 specifically addresses needs for compact power distribution with secure locking features. It complements other connectors in the series by offering a balance of electrical capacity and mechanical stability for various industrial and commercial electronic assemblies.
