Product Detailed Parameters
- Description：CONN HEADER VERT 3POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Friction Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

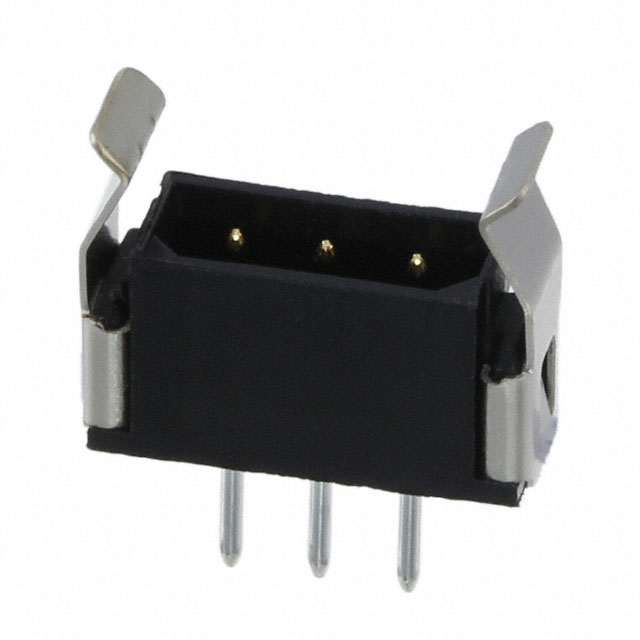

The Harwin M80-8050322 is a Datamate L-Tek series header connector featuring a vertical, right-angle through-hole mounting style. It provides three male pin positions with a 2.00mm pitch. The unit includes an integrated locking mechanism for secure mating and utilizes gold-plated contacts housed in black polyphenylene sulfide (PPS) insulation. Rated for 120V and 2.2A, it operates within a temperature range of -55°C to +125°C.
Feature Summary
- Vertical right-angle design for compact board integration
- Integrated locking mechanism ensures secure connection retention
- Gold-plated phosphor bronze contacts for reliable conductivity
- High-temperature resistant PPS housing material
Applications
- Industrial control systems requiring secure interconnects
- Automotive electronics modules
- General purpose PCB-to-PCB connections
- Military equipment interfaces
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating thickness and housing color variants. Ensure compatibility with the corresponding female socket counterpart from the same Datamate L-Tek family. Confirm that the vertical right-angle form factor aligns with the mechanical constraints of the target assembly layout.
Selection Notes
Select this component when a low-profile vertical header with positive locking is required. The 2.00mm pitch suits dense circuit layouts. Consider the 2.2A current rating for power distribution needs. Verify that the through-hole termination method matches the manufacturing process capabilities of the printed circuit board being assembled.
Part Context
This part belongs to the Datamate L-Tek family, known for high-density rectangular connectors. It complements female sockets and cable assemblies within the same series. The design emphasizes robust mechanical retention and electrical reliability in demanding environments, serving as a critical interface node in complex electronic systems.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Cross-referencing requires matching pitch, locking style, and terminal orientation.
