M80-8050422

Overview

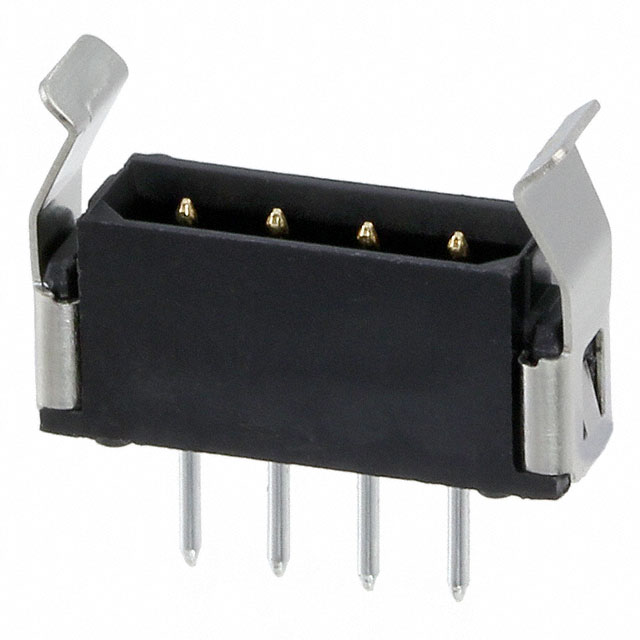

The Harwin M80-8050422 is a Datamate L-Tek series vertical header featuring four positions with a 2 mm pitch. Designed for through-hole mounting, it utilizes brass contacts with gold plating and a black PPS housing rated UL94 V-0. The connector supports a current rating of 2.2 A and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Datamate J-Tek interlocking system ensures secure mating
• Gold-plated contacts provide reliable conductivity
• Vertical orientation facilitates board stacking

Applications

• Industrial control systems
• Automotive electronics
• Military equipment

Procurement Notes

Verify the specific contact configuration and pin count against the official datasheet before integration. Confirm that the operating voltage and current ratings align with the target circuit requirements. Ensure the through-hole footprint matches the PCB design specifications to guarantee proper mechanical stability.

Selection Notes

Select this component when a low-profile, vertically oriented header is required for signal or power distribution. The 2.2 A rating suits moderate current applications. Verify compatibility with the corresponding female socket from the same Datamate family to ensure proper engagement and locking mechanism function.

Part Context

This part belongs to the Datamate L-Tek series, designed for high-density interconnects. It complements other headers in the M80 series, offering standardized dimensions for consistent assembly across various electronic enclosures and modular designs.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific variant. Cross-referencing requires matching the 2 mm pitch, 4-position count, and vertical through-hole mounting style.
