M80-8050722

Overview

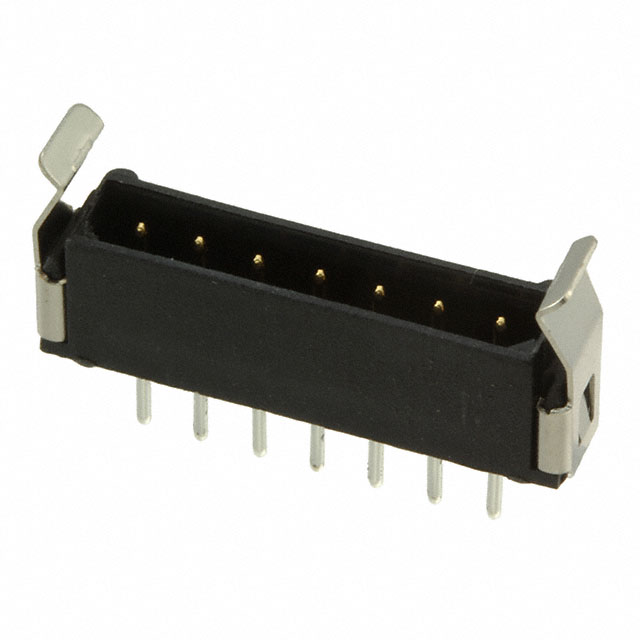

The M80-8050722 is a board connector from the Datamate L-Tek series manufactured by Harwin Inc. It features a male header configuration with seven contacts arranged in a single row. The connector utilizes a 0.079-inch (2.00mm) pitch and is designed for vertical through-hole solder termination. Constructed with phosphor bronze contacts featuring gold plating on the mating surface, it ensures reliable electrical performance. The housing is made of black insulator material, providing a robust structure for board-to-board or cable applications.

Feature Summary

• Features a friction latch mechanism for secure connection retention without jackscrews.
• Utilizes four-finger beryllium copper contact design for high reliability under harsh conditions.
• Supports vertical mounting orientation for efficient space utilization on printed circuit boards.

Applications

• Industrial control systems requiring vibration resistance
• Automotive electronics assemblies
• Medical device interconnections

Procurement Notes

Verify the specific datasheet version to confirm compliance with RoHS and REACH regulations. Ensure the selected variant matches the required stacking height and current rating specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm authenticity and availability status before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, single-row male header with a friction lock is required. Consider the 2.00mm pitch and vertical orientation for space-constrained designs. Evaluate the thermal operating range and voltage ratings against system requirements. Ensure compatibility with corresponding female receptacles within the Datamate L-Tek family for proper mating interface alignment.

Part Context

This component belongs to the Datamate L-Tek series, known for durability in demanding environments. The series offers various configurations including covered and uncovered options. The M80-8050722 specifically provides a standard vertical header solution suitable for general-purpose interconnect needs where mechanical stability and ease of assembly are prioritized over complex locking mechanisms.

Replacement Considerations

Compatible counterparts include M80-8400722 (female receptacle) for mating. Direct replacements must maintain the 2.00mm pitch, 7-position count, and vertical through-hole mounting style. Verify that substitute parts offer equivalent contact materials and insulation properties to ensure functional equivalence.
