M80-8140622

Overview

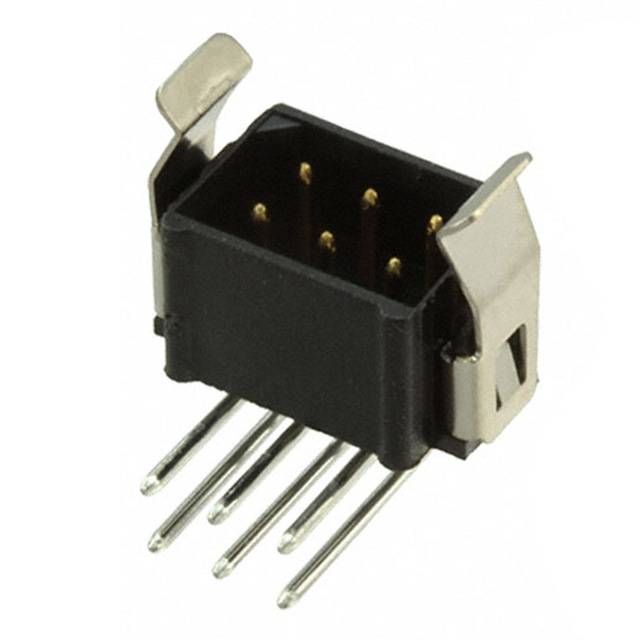

The M80-8140622 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 6-position, 2-row configuration with a 2.00mm (0.079 inch) pitch. The connector utilizes male pin contacts made of phosphor bronze with gold plating for reliable signal transmission. Designed for through-hole installation on printed circuit boards, it offers a vertical orientation and solder pin termination. The housing is constructed from black polyester material, providing structural integrity for wire-to-board applications.

Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology to ensure connection integrity without loss.
• Features a latching mechanism for secure mating and unmating in industrial environments.
• Constructed with a black polyester housing suitable for vertical PCB mounting.

Applications

• Industrial control systems requiring robust interconnects
• Data transmission modules needing high-speed signal integrity
• Wire-to-board connections in compact electronic assemblies

Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified supply chain partners. Confirm that the received units match the M80-8140622 designation and exhibit no physical damage to the gold-plated pins or housing. Ensure compliance with relevant environmental standards if required for specific deployment regions. Inspect packaging for moisture sensitivity indicators if applicable to storage conditions.

Selection Notes

Select this component when a 6-pin, dual-row header with a 2mm pitch is required for vertical through-hole mounting. Consider the Datamate L-Tek series for applications demanding high reliability and secure latching. Evaluate the gold-plated phosphor bronze contacts for corrosion resistance and conductivity needs. Ensure the design accommodates the vertical profile and solder termination method specified for this series.

Part Context

This part belongs to the Datamate L-Tek family, known for its high-density interconnect solutions. The series supports various configurations including crimp and solder terminations across multiple pin counts. The M80-8140622 specifically addresses the need for a small-footprint, high-reliability header in space-constrained industrial and data applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The M80-8140622 is listed as obsolete and no longer manufactured. Users should consult official Harwin resources for current equivalent recommendations or compatible alternatives within the Datamate ecosystem.

FAQ

What is the contact material used in the M80-8140622?

The contacts are made of phosphor bronze with a gold plating finish to ensure durability and low contact resistance.

Is the M80-8140622 currently in production?

No, the M80-8140622 is classified as obsolete and is no longer manufactured by Harwin Inc.
