M80-8141022

Overview

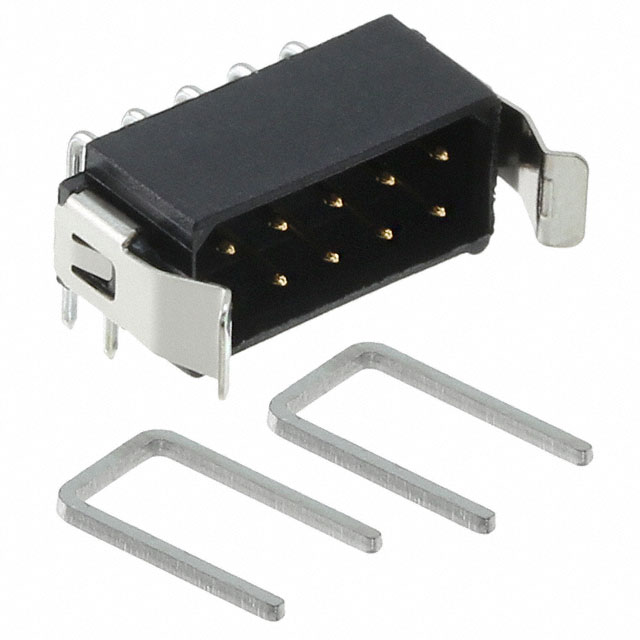

The M80-8141022 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 10-position configuration with a 2mm (0.079 inch) pitch across two rows. The component utilizes male pin contacts made from phosphor bronze, finished with gold plating for reliable conductivity. Designed for through-hole mounting, it employs a right-angle orientation to facilitate board-to-board or wire-to-board connections. The housing is constructed from PPS material, ensuring stability in demanding environments.

Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact design for secure mating under vibration and shock
• Features a horizontal PC tail configuration suitable for space-constrained right-angle installations
• Incorporates a latching mechanism to ensure connection integrity during high-load operations

Applications

• Board-to-board interconnects requiring right-angle routing
• Wire-to-board connections in harsh industrial environments
• Applications subject to high vibration, shock, and acceleration loads

Procurement Notes

Verify the specific suffix code against the official Harwin datasheet to confirm the exact termination style and latch configuration. Ensure the selected variant matches the required right-angle orientation and through-hole mounting specifications for your PCB layout. Cross-reference the contact material and plating thickness requirements with your system's environmental standards before finalizing the procurement order.

Selection Notes

Select this component when a low-profile, right-angle header is required for robust signal transmission. The Datamate L-Tek series offers superior durability compared to standard connectors, making it ideal for safety-critical applications. Consider the mechanical locking feature if the assembly will experience significant mechanical stress or thermal cycling during operation.

Part Context

This part belongs to the Datamate L-Tek family, known for its high-performance capabilities in extreme conditions. The series is engineered to withstand repeated mating cycles without performance degradation. It serves as a critical interconnect solution for automotive, military, and general industrial sectors where reliability is paramount.

Replacement Considerations

M80-8141025
