M80-8150622

Overview

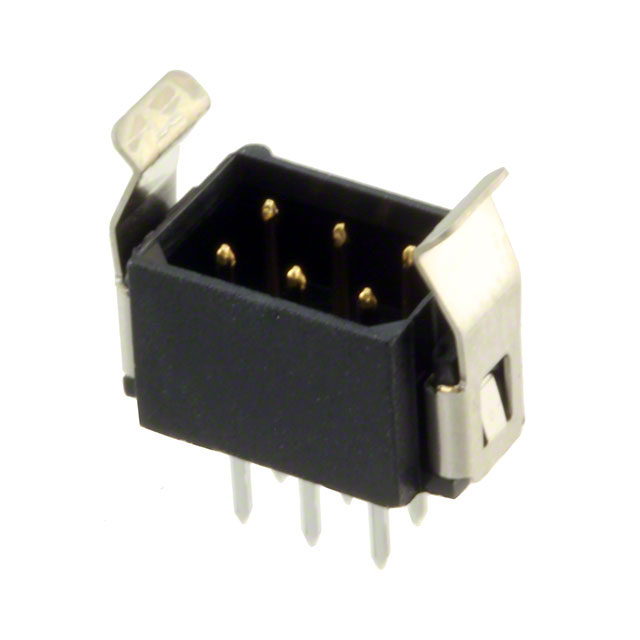

The Harwin M80-8150622 is a Datamate L-Tek series header connector featuring a 6-position, 2-row configuration with a 2 mm (0.079 in) pitch. It utilizes male pin contacts made of phosphor bronze with selective gold and tin/lead plating. Rated for 3 A current and 120 V voltage, the unit employs solder pin termination for through-hole mounting at a straight angle. The housing is constructed from black polyester material.

Feature Summary

• Friction latch mechanism secures mating connections
• Selective contact plating ensures reliable conductivity
• Vertical orientation facilitates standard board integration

Applications

• General electronic interconnect systems
• Industrial control panel wiring
• Consumer electronics assembly

Procurement Notes

This component is officially listed as End-of-Life (EOL) by the manufacturer. Availability is restricted, and distributors may not stock this item in all regions. Buyers must verify current supply status and lead times carefully before ordering, as replacement parts are recommended for new designs.

Selection Notes

Engineers should consider the obsolete status when selecting this part. Verify that the 2 mm pitch and 6-position count match the design requirements. Ensure the friction latch style is compatible with the mating socket. Review the RoHS compliance data sheet for specific environmental restrictions.

Part Context

Part of the Datamate L-Tek family, designed for high-density applications. The M80 series offers robust mechanical performance with standardized dimensions. This specific model represents a legacy vertical header solution within Harwin's broader interconnect portfolio.

Replacement Considerations

M80-8540642 is a documented substitute offering similar Datamate L-Tek specifications.
