Product Detailed Parameters
- Description：CONN HEADER SMD 4POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Pick and Place
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

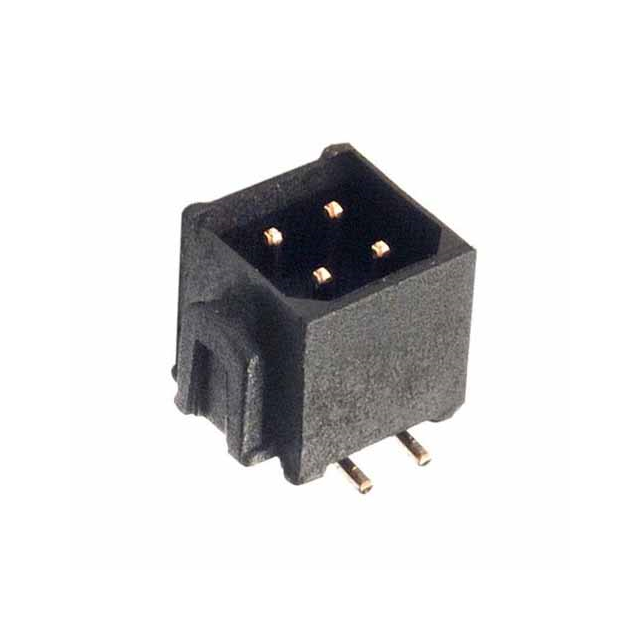

The M80-8260442P is a Datamate L-Tek header connector featuring a 2.00mm pitch and four positions in a single row. Designed for surface-mount installation, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin plating on the posts. The housing is constructed from black, glass-filled PPS rated UL94 V-0. It supports board-to-board or cable applications with a shrouded design and friction lock retention. Rated for 2.2A at 120V, it operates within a temperature range of -55°C to 125°C.
Feature Summary
- Surface-mount technology implementation for automated assembly
- Shrouded four-wall shielding for contact protection
- Friction lock retention mechanism for secure mating
- High-temperature resistant PPS insulation material
Applications
- Board-to-board interconnections
- Cable-to-board connections
- High-density electronic assemblies
- Automotive control modules
Procurement Notes
Verify RoHS compliance status as historical data indicates potential non-compliance for this specific suffix variant. Confirm current availability through authorized distributors, noting that some sources list this part as obsolete or discontinued. Ensure compatibility with mating sockets from the same Datamate L-Tek series before procurement.
Selection Notes
Select this component when surface-mount mounting is required for a 4-position connection. Verify that the 2.00mm pitch aligns with PCB layout constraints. Consider the 120V rating for low-voltage signal transmission. Ensure the friction lock feature meets mechanical retention requirements without additional fasteners.
Part Context
This part belongs to the Harwin Datamate L-Tek series, known for high shock and vibration resistance. It is a male header variant designed for compact, high-density applications. The series offers various stacking heights and termination options to suit different enclosure depths and manufacturing processes.
Replacement Considerations
- M80-8260442
FAQ
What is the mating retention method?
The connector uses a friction lock mechanism to secure the mating pair.
Is the connector shrouded?
Yes, it features a shrouded design with four-wall shielding.
