M80-8260842

Overview

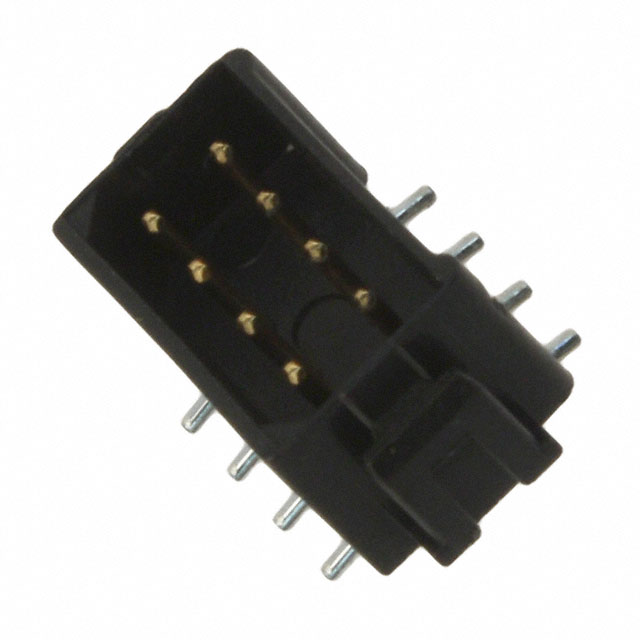

The M80-8260842 is a Datamate L-Tek header connector featuring an 8-position, 2-row vertical surface mount configuration with a 2.00mm pitch. It utilizes phosphor bronze contacts with 0.75µm gold plating on mating surfaces and tin-lead plating on solder posts. The housing is constructed from glass-filled PPS rated UL94 V-0, providing a friction lock mechanism. Rated for 800V and 2.2A, it operates within -55°C to 125°C.

Feature Summary

• Vertical surface mount design for board-to-board or cable applications
• Datamate L-Tek series with friction lock retention
• Gold-plated mating contacts for reliable signal transmission
• Shielded four-wall housing structure

Applications

• Board-to-board interconnections
• Cable-to-board connections
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific contact plating composition, as datasheets may list tin-lead or tin variants. Confirm RoHS compliance status, as some sources indicate non-compliance. Ensure the selected variant matches the required locking mechanism and housing color specifications for the target assembly.

Selection Notes

Select this component for high-density vertical mounting requirements where a 2.00mm pitch is necessary. Consider the 800V rating and 2.2A current capacity for circuit design. Verify compatibility with corresponding socket connectors in the same Datamate L-Tek series for proper mating height and alignment.

Part Context

This part belongs to the Harwin Datamate L-Tek family, designed for compact electronic assemblies. It offers a robust mechanical connection with a low profile. The series supports various pin counts and configurations, making it suitable for diverse industrial and commercial connectivity needs requiring reliable performance.

Replacement Considerations

M80-8260642P is listed as a similar alternative by distributors. Verify pin count, row configuration, and plating specifications before substitution to ensure mechanical and electrical compatibility.
