M80-8261022

Overview

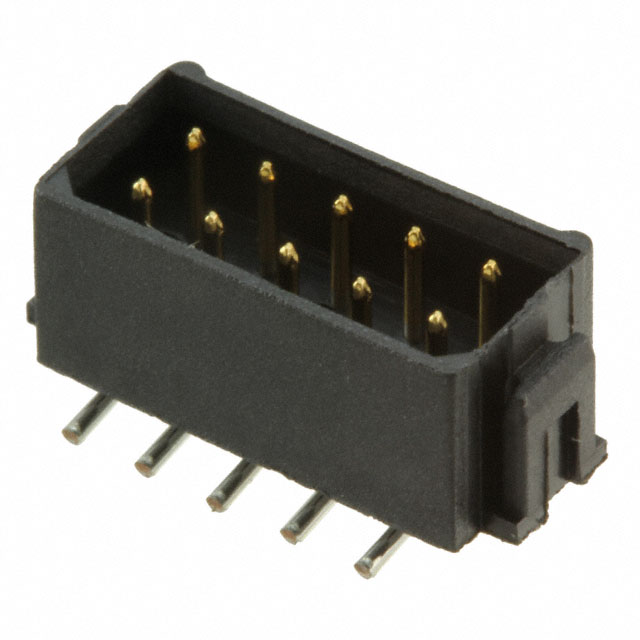

The M80-8261022 is a Datamate L-Tek series connector header manufactured by Harwin Inc. It features a 10-position configuration with a 2.00mm pitch arranged in two rows. Designed for surface mount installation, the component utilizes solder pin termination and male contact types. The contacts are gold-plated to ensure reliable signal transmission within electronic assemblies.

Feature Summary

• Surface mount technology integration for automated PCB assembly
• Gold-plated phosphor bronze contacts for corrosion resistance
• Dual-row layout supporting compact board-to-board connections

Applications

• Embedded system interconnects
• Industrial control panel wiring
• Consumer electronics internal circuitry

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm exact pin count and termination style. Ensure compatibility with existing PCB footprint designs before finalizing procurement orders to prevent integration errors.

Selection Notes

Select this component when surface mount mounting is required for high-density applications. Verify that the mating connector belongs to the same Datamate L-Tek family to guarantee proper mechanical alignment and electrical continuity during operation.

Part Context

This part belongs to the Datamate L-Tek family, characterized by robust construction and high reliability. It serves as a critical interface element in modern electronic systems, providing stable connectivity between circuit boards and peripheral devices in constrained spaces.

Replacement Considerations

M80-8261045 is listed as a parameter-equivalent alternative. Confirm mechanical dimensions and pinout compatibility before substitution.
