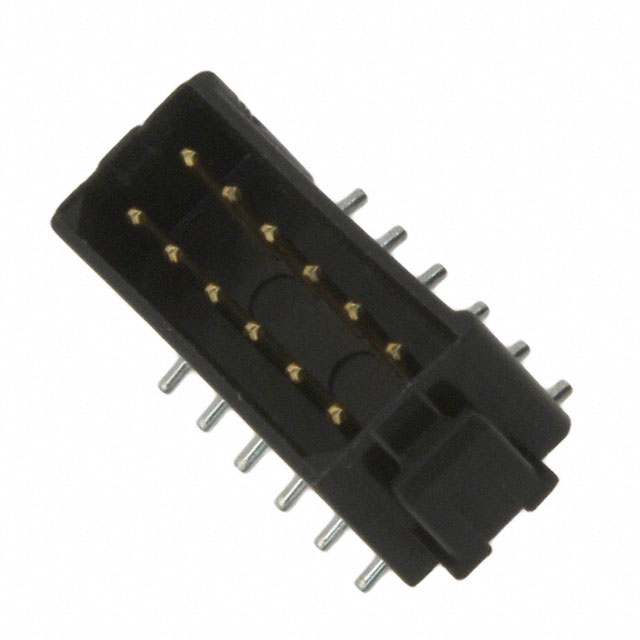

M80-8261242

$3.02

Description：CONN HEADER SMD 12POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:0bccb1c567cc Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 12POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Plug
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.205" (5.20mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8261242

Overview

The M80-8261242 is a Datamate J-Tek series board connector manufactured by Harwin Inc. It features a vertical surface-mount design with 12 positions arranged in a dual in-line configuration (6+6). The connector utilizes a 2.00mm pitch and includes an unlatched plug assembly. Contact materials are brass with gold plating, while the housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber. It supports a current rating of 3A and operates within a temperature range of -55°C to +125°C.

Feature Summary

Vertical surface-mount termination for compact PCB integration
Gold-plated brass contacts ensure reliable signal transmission
Glass-filled PPS insulation provides thermal stability and UL94 V-0 flammability rating

Applications

General-purpose electronic interconnections
Industrial control systems requiring robust connectors
Automotive electronics applications

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact contact plating thickness and mating compatibility. Ensure the selected variant matches the required unlatched configuration for the intended assembly process. Cross-reference the datasheet for precise reflow soldering profiles to maintain component integrity during manufacturing.

Selection Notes

Select this component when a vertical SMT header with a 2.00mm pitch is required. The 12-position layout suits moderate density applications. Consider the unlatched design for cost-sensitive or space-constrained environments where mechanical retention is handled by other means. Verify that the 3A current rating meets the circuit requirements.

Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnects. It complements matching receptacles and wire-to-board assemblies within the same system. The series offers various mounting styles and latch options to accommodate diverse design constraints across multiple industries.
