M80-8261422

Overview

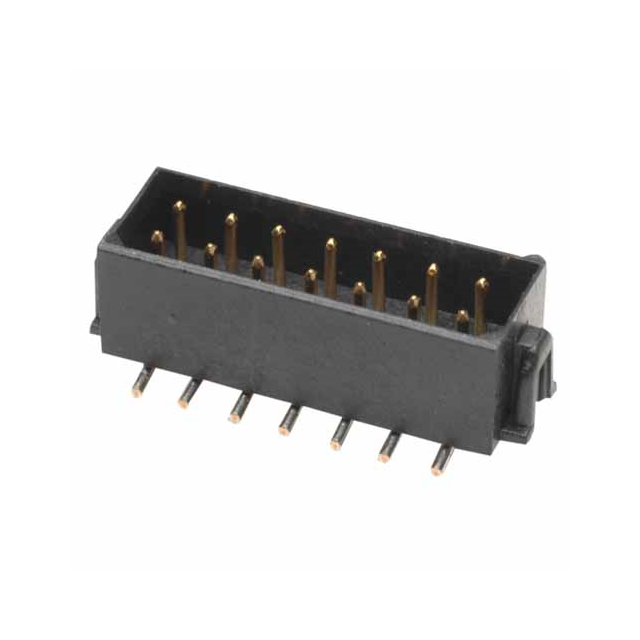

The M80-8261422 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 2-row, 14-position vertical surface-mount design with a 2.00mm (0.079") pitch. The contacts are gold-plated phosphor bronze pins with a mating thickness of 0.75µm and a tail thickness of 3.00µm. Rated for 2.2A at 800V, it utilizes PPS insulation with UL94 V-0 flammability. The component supports pick-and-place assembly and offers stacking heights of 7.85mm, 8.45mm, 10.5mm, or 14.25mm.

Feature Summary

• Vertical surface-mount construction optimized for automated pick-and-place manufacturing processes.
• Four-wall shielding design provides robust mechanical protection and alignment during mating.
• Gold-plated phosphor bronze contacts ensure reliable electrical performance in board-to-board applications.

Applications

• Board-to-board interconnections requiring high-density mounting
• Automated pick-and-place assembly lines for SMT production
• Compact electronic modules utilizing vertical stacking configurations

Procurement Notes

Verify the specific suffix 'P' indicates the un-latched variant compatible with standard pick-and-place equipment. Confirm that the required stacking height matches one of the four supported options: 7.85mm, 8.45mm, 10.5mm, or 14.25mm. Ensure the design accommodates the 2.00mm row spacing and 2.00mm pitch constraints for proper footprint alignment.

Selection Notes

Select this component when a vertical, un-latched SMT header is required for high-reliability connections. The 2.2A current rating and 800V voltage rating suit most digital and low-power analog interfaces. Consider the available stacking heights to determine if additional standoffs or specific PCB layering is necessary for the target application geometry.

Part Context

This part belongs to the Datamate L-Tek family, known for its compact 2mm pitch and robust shielding. Unlike the Trio-Tek series which may offer different latch mechanisms, the L-Tek line emphasizes high-density connectivity. The M80-8261422 specifically serves as an un-latched plug assembly, distinguishing it from latched variants within the same product line.

Replacement Considerations

M80-8261422P is listed as a similar alternative. Verify if the 'P' suffix denotes identical pick-and-place compatibility or specific packaging differences. Cross-reference the pin count, pitch, and stacking height requirements to ensure functional equivalence before substitution.
