Product Detailed Parameters
- Description：CONN HEADER SMD 14POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

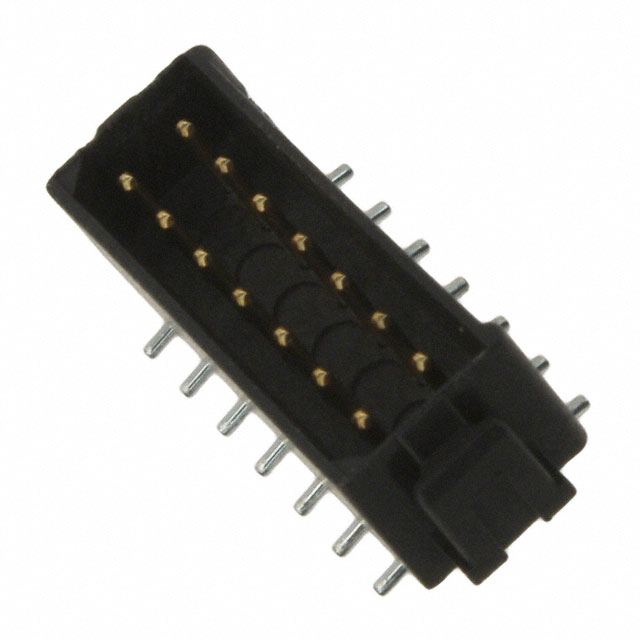

The Harwin M80-8261442 is a Datamate L-Tek male plug connector designed for surface mount technology. It features a double-row configuration with 14 positions (7+7) and a 2mm pitch. The contacts are gold-plated phosphor bronze, rated for 3A current and 800V voltage. Constructed with black polyphenylene sulfide insulation, it operates between -55°C and +125°C. This unit lacks latches and is packaged in tubes.
Feature Summary
- Surface mount vertical male plug design
- Gold-plated phosphor bronze contacts
- High-temperature PPS insulation material
Applications
- Automotive electronics systems
- Industrial control equipment
- Military and defense applications
Procurement Notes
Verify the specific part number against official Harwin documentation to confirm the absence of latching mechanisms and surface mount orientation. Ensure compatibility with the intended PCB layout and mating receptacle specifications before procurement.
Selection Notes
Select this component when a latch-free, high-reliability surface mount connection is required. Consider the 2mm pitch and 14-position count for space-constrained designs needing robust electrical performance in harsh environments.
Part Context
This connector belongs to the Datamate L-Tek series, known for high-density interconnects. It complements the broader Datamate ecosystem, offering versatile mounting options and reliable performance across various industrial sectors.
Replacement Considerations
M80-8261442 variants with different stacking heights or latch configurations may serve as alternatives if mechanical constraints differ.
FAQ
Does the M80-8261442 include latching mechanisms?
No, this specific variant is supplied without latches.
What is the contact material used in this connector?
The contacts are made from phosphor bronze with a gold plating finish.
