Product Detailed Parameters
- Description：CONN HEADER SMD 14POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Pick and Place
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

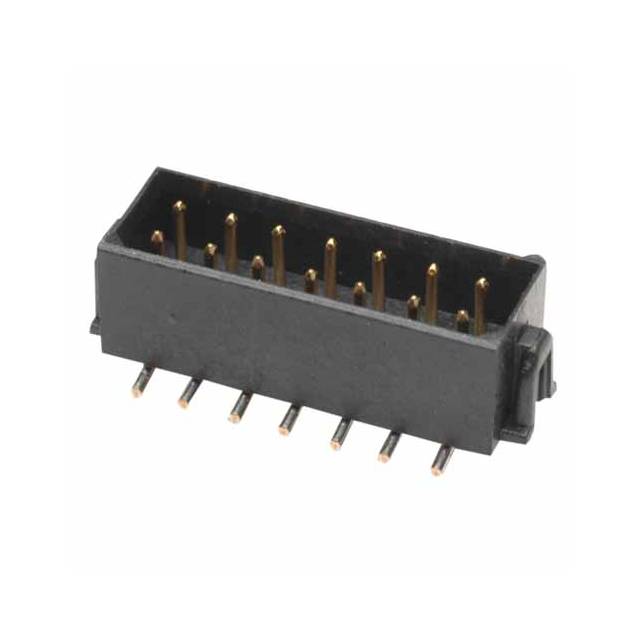

The Harwin M80-8261442P is a Datamate L-Tek series header connector designed for surface mount technology applications. It features a 14-position configuration arranged in a dual-row (DIL) layout with a standard 2 mm pitch. The component utilizes gold-plated phosphor bronze contacts to ensure reliable signal transmission and corrosion resistance. The housing is constructed from black Polyphenylene Sulfide (PPS), providing structural integrity and thermal stability. This connector supports board-to-board or cable interconnections, offering a secure mating interface suitable for high-reliability electronic assemblies.
Feature Summary
- Surface mount design for automated PCB assembly processes
- Gold-plated phosphor bronze contacts for enhanced conductivity
- Polyphenylene Sulfide (PPS) housing material for thermal resilience
Applications
- High-density board-to-board interconnects
- Cable-to-board connections requiring surface mounting
- Industrial control systems demanding high reliability
Procurement Notes
Verify the specific suffix 'P' against the manufacturer's official documentation to confirm surface mount compatibility and pin configuration. Ensure that the ordering information matches the exact 14-position DIL requirement. Cross-reference the datasheet for RoHS compliance status and recommended soldering profiles to guarantee proper integration into the manufacturing workflow.
Selection Notes
Select this component when a surface mount solution is required for a 14-position connection within the Datamate ecosystem. Consider the 2 mm pitch constraints and the need for gold contact plating in your design. Evaluate the mechanical retention requirements of the SMT process versus through-hole alternatives to determine if this specific variant meets the spatial and electrical specifications of the target application.
Part Context
This part belongs to the Harwin Datamate L-Tek family, which specializes in robust 2 mm pitch connectors. The series is engineered for demanding environments where secure locking mechanisms and high cycle durability are essential. The M80-8261442P represents the surface mount variation, distinguishing it from the standard through-hole headers in the same series by its termination method and footprint.
Replacement Considerations
No public confirmed substitute part numbers are available.
