Product Detailed Parameters
- Description：CONN HEADER SMD 20POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

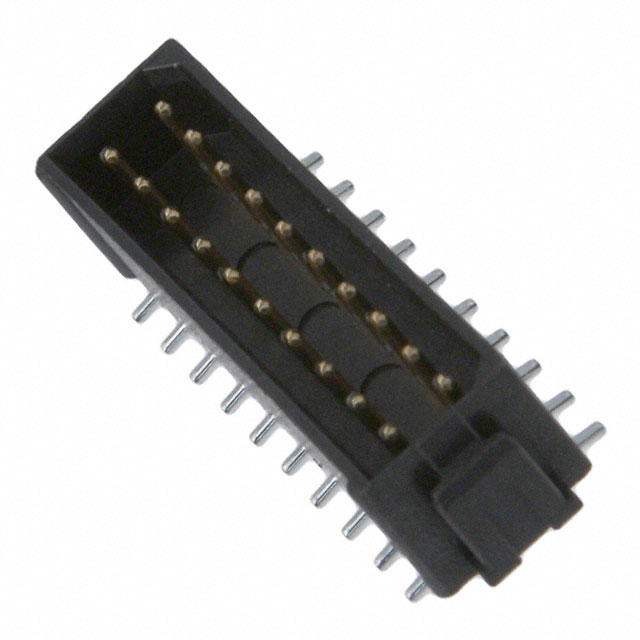

The Harwin M80-8262042 is a Datamate L-Tek header connector featuring 20 positions in a dual-row configuration. It utilizes a 2.00mm pitch with vertical surface-mount termination. The contacts are male pins made of phosphor bronze, plated with tin and lead. Rated for 800V and 3A, it operates within a -55°C to 125°C range. Insulation is glass-filled PPS (UL94 V-0). Mated stacking heights include 7.85mm, 8.45mm, 10.5mm, and 14.25mm.
Feature Summary
- High mechanical resilience with 100G shock, 40G bump, and 10G vibration resistance.
- Secure latching mechanism ensures reliable connection stability.
- Four-wall shielding provides comprehensive electromagnetic interference protection.
Applications
- Board-to-board interconnections
- Wire-to-board assemblies
- Industrial control systems
- Automotive electronics
Procurement Notes
Verify RoHS compliance status as sources indicate conflicting information regarding lead content. Confirm the specific contact plating specification matches project requirements. Ensure the selected mating connector aligns with the required stacking height options provided by this header series.
Selection Notes
Select this component for applications requiring robust environmental durability and high voltage isolation. The vertical SMT profile suits space-constrained PCB layouts. Verify that the tin/lead contact finish is compatible with assembly processes and regulatory standards applicable to the final product design.
Part Context
This part belongs to the Datamate L-Tek series, designed for demanding environments. It offers versatile stacking heights and secure locking features. The series supports both board-to-board and wire-to-board configurations, providing a standardized solution for high-reliability interconnect needs across various industries.
Replacement Considerations
- M80-8262042P
FAQ
What is the rated voltage for this connector?
The M80-8262042 has a voltage rating of 800V.
Does this connector feature a latching mechanism?
Yes, it includes a latch base for secure retention.
