M80-8262642

Overview

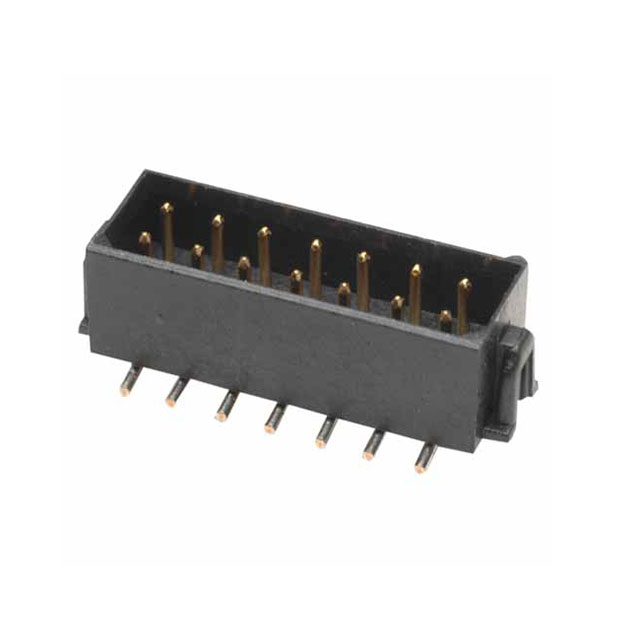

The M80-8262642 is a Datamate L-Tek series header connector manufactured by Harwin. It features a surface mount installation style with 18 positions arranged in a dual inline configuration. The connector utilizes a 2.00mm pitch and operates within a temperature range of -55°C to +125°C. Rated current is 2.2A with an 800V rating. Contacts are made of phosphor bronze with gold plating, while the housing is black polyphenylene sulfide reinforced with glass fiber.

Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated phosphor bronze contacts for reliable conductivity
• High-temperature resistant PPS insulation material

Applications

• Board-to-board interconnects
• Cable-to-board connections
• Compact electronic device assemblies

Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm pin count and termination type. Ensure compatibility with mating sockets regarding stacking height requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.

Selection Notes

Select this component for applications requiring surface mount headers with high thermal stability. Verify that the 2.00mm pitch matches the PCB footprint. Check that the 2.2A current rating meets circuit demands. Ensure the operating temperature range covers the intended environment.

Part Context

This part belongs to the Datamate L-Tek family, known for high-reliability interconnects. It complements socket counterparts like M80-8501845. The series supports various stacking heights and latch options for secure mechanical connection in dense layouts.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Cross-reference with other Harwin Datamate L-Tek headers if availability is an issue, ensuring identical pin count and pitch.
