M80-8270642

Overview

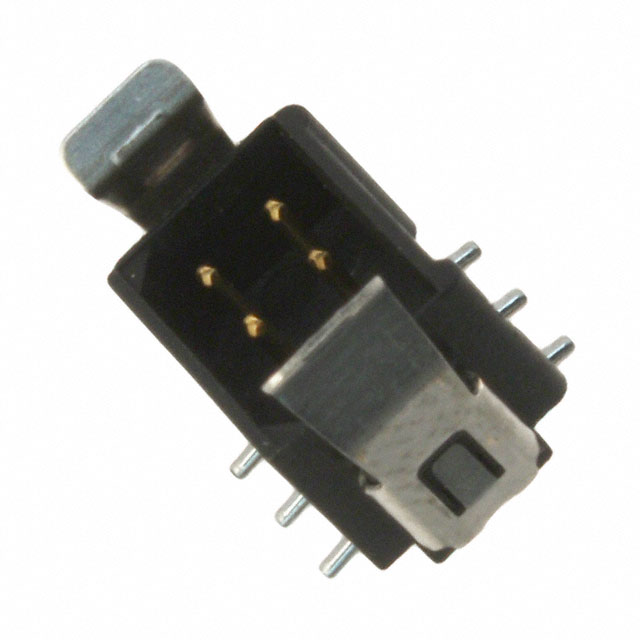

The M80-8270642 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a surface mount installation with six positions arranged in two rows. The mating pitch is 0.079 inches (2.00mm). The contacts are male pins made of phosphor bronze with gold plating on the mating interface and tin-lead plating on the tail. The housing is black PPS reinforced with glass fiber, rated UL94 V-0. It utilizes a friction latch for retention and supports a rated voltage of 120V and current of 3A per contact.

Feature Summary

• Surface mount design with vertical orientation for PCB integration
• Friction latch mechanism ensures secure mating retention
• Four-wall shielding provides electromagnetic interference protection
• Gold-plated contacts ensure reliable signal transmission

Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as specific variants may differ. Check for obsolescence notices or product change notifications prior to procurement. Ensure storage conditions meet moisture sensitivity level requirements to maintain solderability and performance integrity.

Selection Notes

Select this model for applications requiring compact surface mount headers with secure latching. Verify that the mating connector matches the Datamate L-Tek series specifications. Consider thermal management capabilities given the operating temperature range. Ensure PCB layout accommodates the specified stacking heights and pin configuration for proper assembly.

Part Context

This component belongs to the Datamate L-Tek family, known for high-density interconnect solutions. It complements matching socket connectors within the same series. The design emphasizes reliability in harsh environments through robust materials and shielding. It serves as a critical link in complex electronic assemblies requiring stable electrical connections.

Replacement Considerations

M80-8270622P is listed as a similar alternative part number from Harwin Inc.
