M80-8270822

Description：CONN HEADER SMD 8POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:bc30e100e510 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 8POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.205" (5.20mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8270822

Overview

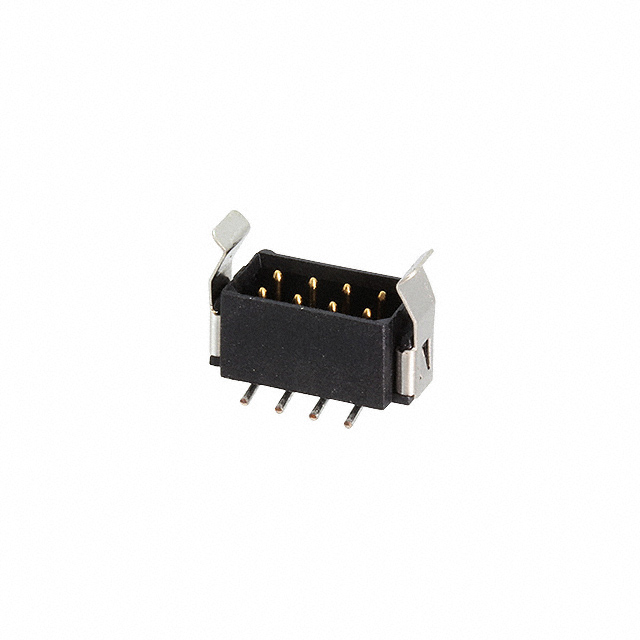

The M80-8270822 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 2mm pitch and an 8-position configuration arranged in two rows. Designed for surface mount installation, this component utilizes friction lock retention. The contacts are gold-plated phosphor bronze pins with a mating thickness of 29.5µin (0.75µm). Rated for 800V and 2.2A, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black PPS material reinforced with glass fiber, meeting UL94 V-0 flammability standards.

Feature Summary

Surface mount design with friction lock retention
Gold-plated phosphor bronze contacts for reliable signal transmission
High voltage and current rating suitable for demanding applications

Applications

Embedded systems interconnects
Automotive electronic solutions
Power supply unit connections

Procurement Notes

Verify the specific suffix 'P' against official datasheets to confirm plating specifications and RoHS compliance status. Check manufacturer archives for end-of-life notifications or product change notices, as availability may be restricted. Ensure compatibility with mating sockets from the same Datamate L-Tek series before procurement.

Selection Notes

Select this model when a low-profile surface mount header with high reliability is required. The 2mm pitch allows for dense circuit board layouts. Verify that the application environment stays within the specified thermal limits and that the 8-pin count matches the system requirements. Consider the four-wall shielded housing for improved environmental protection.

Part Context

This component belongs to the Datamate L-Tek series, known for rugged performance in harsh environments. It is part of Harwin's broader M80 connector family, which supports various mounting styles and pin counts. The series is widely used in industries requiring secure and durable interconnections.
