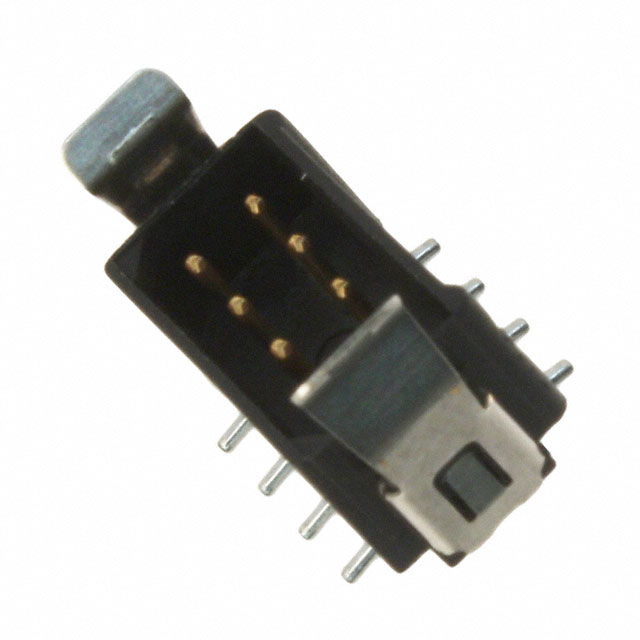

M80-8270842

Description：CONN HEADER SMD 8POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:7ba48ab39d44 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 8POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.205" (5.20mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：800V

Download product information

M80-8270842

Overview

The M80-8270842 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a surface mount design with six positions arranged in two rows. The mating pitch is 2.00mm (0.079 inches), and the insulation height is 5.20mm (0.205 inches). The contacts are male pins made of phosphor bronze with gold plating, rated for 2.2A current and 800V voltage. The housing is black PPS with glass fiber reinforcement, UL94 V-0 rated. Operating temperature ranges from -55°C to 125°C. The component utilizes a friction lock mechanism and includes a four-wall shielded cover.

Feature Summary

Surface mount construction with friction lock retention
Four-wall shielded cover for EMI protection
Gold-plated phosphor bronze contacts for reliable signal transmission
High-temperature resistant PPS insulation material

Applications

Board-to-board interconnections
Wire-to-board connections
Embedded systems requiring high reliability
Automotive electronic modules

Procurement Notes

Verify component status as this part may be discontinued or subject to end-of-life notices. Confirm RoHS compliance requirements against specific project standards, as historical data indicates non-compliance for certain variants. Ensure compatibility with mating receptacles within the Datamate L-Tek family. Check for available replacement alternatives if supply chain continuity is critical for production schedules.

Selection Notes

Select this connector when a low-profile surface mount header with shielding is required. The 2.00mm pitch allows for dense circuit board layouts. Consider the friction lock feature for secure mating without additional fasteners. Evaluate the 800V rating and 2.2A current capacity against electrical load requirements. Ensure PCB footprint matches the SMD package dimensions specified in the official datasheet.

Part Context

This component belongs to the Datamate L-Tek series, designed for harsh environments involving vibration, shock, and acceleration. The series emphasizes durability and high mating cycle endurance through specialized contact designs. It serves as a robust interconnect solution for industrial and automotive applications where connection integrity under stress is paramount.
