M80-8271442

Overview

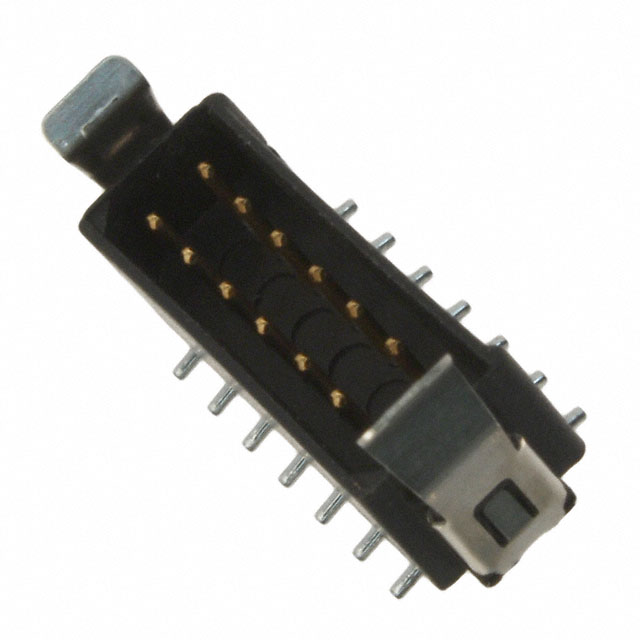

The M80-8271442 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 14-position, dual-row configuration with a 2mm mating pitch. Designed for vertical surface mount installation, the unit utilizes friction latch locking and tin-plated contacts. The connector supports board-to-board or cable-to-board interconnections, rated for 120V and 3A current within an operating temperature range of -55°C to 125°C.

Feature Summary

• Vertical surface mount design for compact PCB integration
• Friction latch mechanism ensures secure mating retention
• Tin-plated phosphor bronze contacts provide reliable conductivity

Applications

• Board-to-board interconnects in industrial control systems
• Cable-to-board connections in measurement equipment
• Compact electronic assemblies requiring vertical mounting profiles

Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance requirements against specific project standards. Validate pin count and row configuration match schematic designs. Ensure soldering parameters align with surface mount specifications for optimal joint integrity.

Selection Notes

Select this model for applications requiring vertical space efficiency and robust mechanical retention. The friction latch system eliminates the need for additional screws during assembly. Tin plating offers cost-effective conductivity suitable for general-purpose signal and power transmission tasks.

Part Context

This component belongs to the Datamate L-Tek series, known for high-density interconnect solutions. The M80-8271442 variant specifically addresses needs for vertical surface mount headers. It provides a reliable connection method for modern electronics manufacturing processes.

Replacement Considerations

M80-8260642 is listed as a similar alternative part number from Harwin Inc.
