M80-8280442

Overview

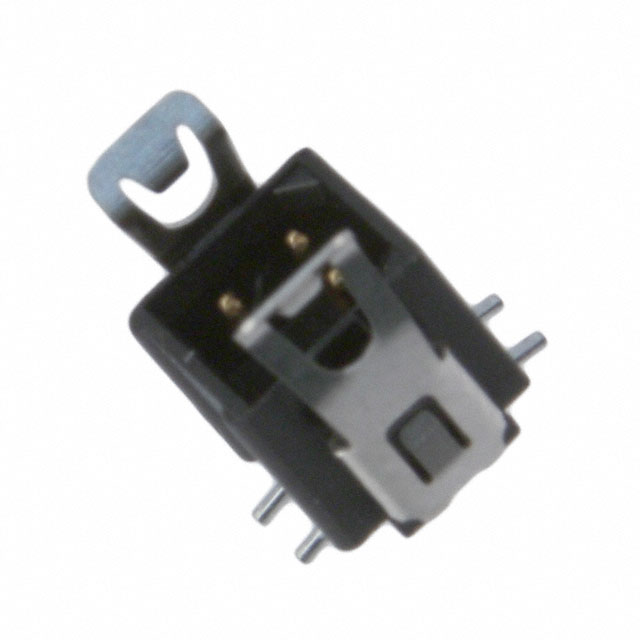

The Harwin M80-8280442 is a Datamate L-Tek DIL male vertical SMT connector featuring a latched design. It provides 4 contacts (2+2) with a 2 mm pitch and two rows. The connector supports board-to-board and wire-to-board applications, offering mated stacking heights of 7.85mm, 8.45mm, 10.5mm, and 14.25mm. It utilizes high-reliability four-finger beryllium copper contact technology to ensure connection integrity without loss. The current rating is 2.2A, with a voltage rating of 800V. Contact finish thickness for the post is 118.1µin (3.00µm).

Feature Summary

• Features a latched mechanism for secure mating.
• Utilizes four-finger beryllium copper contact technology.
• Designed for vertical surface mount installation.

Applications

• Board-to-board interconnections
• Wire-to-board connections

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm all electrical ratings and mechanical dimensions before integration. Ensure compatibility with mating connectors within the Datamate L-Tek series. Cross-reference official specifications against any distributor listings to avoid discrepancies in part identification or variant details.

Selection Notes

Select this component for applications requiring vertical surface mount connectivity with a latching feature. Consider the 2.2A current rating and 800V voltage rating for circuit requirements. Evaluate the available mated stacking heights to ensure sufficient clearance within the assembly design constraints.

Part Context

This part belongs to the Harwin Datamate L-Tek series, which is characterized by high-reliability connectors using beryllium copper contacts. The series offers various configurations for different mounting styles and contact counts, serving diverse industrial and commercial electronic interconnection needs.

Replacement Considerations

M80-8280422
