M80-8280622

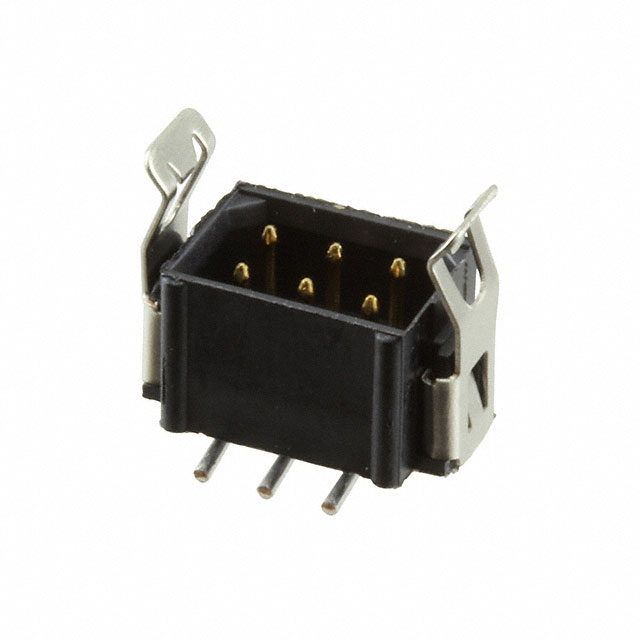

Overview

The Harwin M80-8280622 is a surface mount header within the Datamate L-Tek series, featuring 6 positions arranged in a dual inline configuration. It utilizes a 2.00mm pitch and operates at a rated voltage of 120V with a current capacity of 3A. The connector employs phosphor bronze contacts with gold plating for mating surfaces and tin-lead termination. Constructed from black polyphenylene sulfide (PPS) insulation reinforced with glass fiber, it supports a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Feature Summary

• Surface mount design for automated PCB assembly
• Friction lock mechanism for secure mating
• Gold-plated circular male pins for reliable conductivity
• High-temperature resistant PPS insulation material

Applications

• Board-to-board interconnects in compact electronics
• Cable-to-board connections requiring vertical orientation
• Industrial control modules operating in high temperatures
• Automotive electronic sub-systems

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as historical data indicates non-compliance. Check for end-of-life notices or obsolescence alerts prior to procurement. Ensure storage conditions maintain moisture sensitivity level integrity. Validate packaging quantity matches standard tube specifications for handling efficiency.

Selection Notes

Select this component for applications requiring robust surface mount headers with friction locking capabilities. Consider the 2.00mm pitch and 3A current rating for power distribution needs. Evaluate thermal requirements against the -55°C to 125°C operational range. Assess mechanical stability needs for the dual inline configuration in space-constrained designs.

Part Context

Part of the Datamate L-Tek family, known for high-density interconnect solutions. Designed for harsh environments requiring reliable electrical performance. Complements female counterparts for complete connector system integration. Widely used in sectors demanding durable and compact connection technologies.

Replacement Considerations

M80-8280642 serves as a parameter-equivalent alternative within the same series. Verify pin count, pitch, and mounting style compatibility before substitution. Cross-reference datasheet specifications to ensure functional equivalence in existing designs.
