Overview

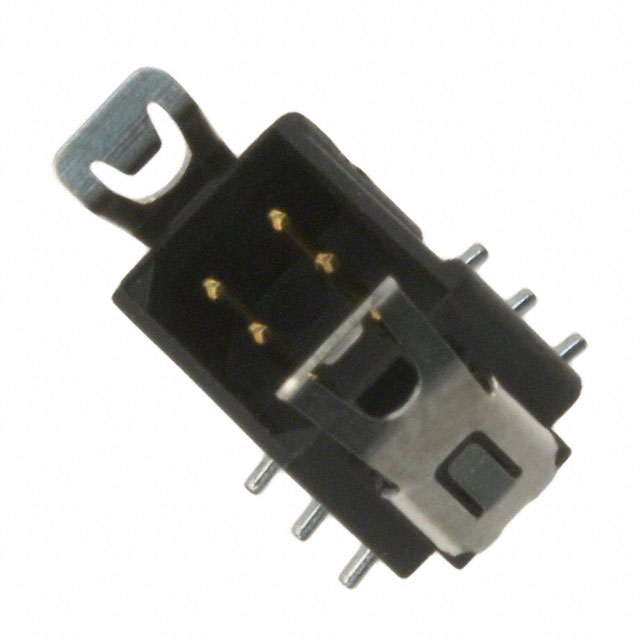

The M80-8280642 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a vertical surface mount design with six positions arranged in two rows. The connector utilizes a 2.00mm pitch and accepts male pins for board-to-board or wire-to-board applications. Rated for 120V and 3A, it employs gold-plated phosphor bronze contacts housed in black PPS insulation. The unit includes a cover and supports solder termination.

Feature Summary

• Vertical surface mount construction for direct PCB integration
• Gold-plated phosphor bronze contacts ensuring reliable conductivity
• Integrated protective cover to shield contacts during handling
• Polarized design prevents incorrect mating orientation

Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• Industrial electronic device interfaces
• Automotive control module connections

Procurement Notes

Verify the specific suffix designation against official Harwin documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating receptacles within the Datamate L-Tek family. Confirm that the surface mount footprint matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile vertical header is required for space-constrained designs. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the integrated cover feature if protection against contamination or mechanical damage is necessary during assembly and operation phases.

Part Context

This part belongs to the Datamate L-Tek family, designed for high-density interconnect solutions. It complements other headers and receptacles within the same series, offering consistent mechanical and electrical characteristics across the product line for standardized system integration.

Replacement Considerations

M80-8280642P is listed as a similar alternative variant. Verify pin configuration and mounting style compatibility before substitution. Cross-reference datasheets to ensure identical electrical ratings and mechanical dimensions are maintained.
