M80-8280642P

Overview

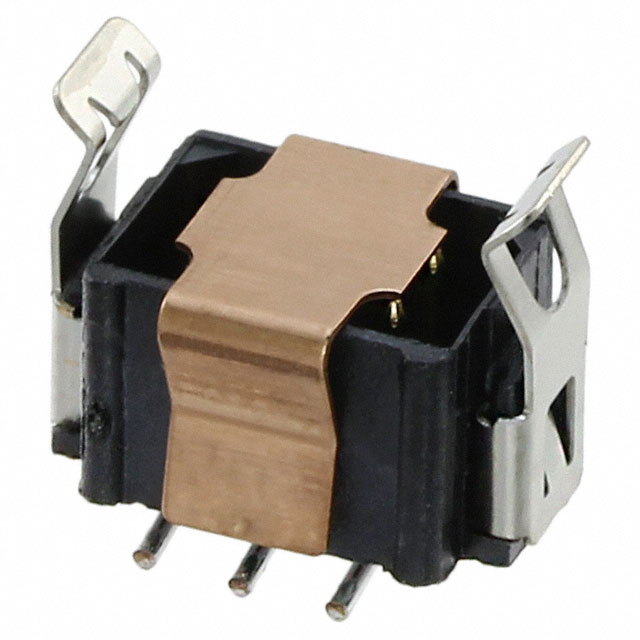

The Harwin M80-8280642P is a Datamate L-Tek series male header connector designed for surface mount technology. It features a 2-row configuration with 6 positions and a 2mm mating pitch. The housing is constructed from black PPS material rated UL94 V-0. Contacts are made of phosphor bronze with selective gold plating over tin, providing a current rating of 3A and voltage rating of 120V. Operating temperature ranges from -55°C to 125°C.

Feature Summary

• Integrated latching mechanism for secure board-to-board or wire-to-board connections
• Selective gold over tin contact finish ensures reliable signal integrity
• Four-wall shielded housing design provides structural stability
• Compatible with automated pick-and-place assembly processes

Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Telecommunications equipment
• Medical instrumentation devices

Procurement Notes

Verify the specific suffix 'P' indicates RoHS non-compliance as per manufacturer documentation. Confirm lead times due to potential end-of-life status associated with this component variant. Ensure compatibility with soldering profiles specified in the official datasheet to maintain joint integrity during assembly.

Selection Notes

Select this part for applications requiring vertical SMT headers with mechanical latching. Compare against M80-8270622P for similar form factors but note differences in compliance and availability. Validate that the 2mm pitch and 6-position count align with PCB layout requirements before finalizing the bill of materials.

Part Context

This component belongs to the Datamate L-Tek family, known for high-density interconnect solutions. It serves as a male header counterpart to compatible sockets within the same ecosystem. The series emphasizes durability and precise alignment for demanding electronic environments.

Replacement Considerations

M80-8260642P is listed as a similar alternative by distributors. Verify functional equivalence and regulatory compliance before substitution. Cross-reference mechanical dimensions and electrical ratings to ensure seamless integration into existing designs.

FAQ

Does the M80-8280642P include a latching feature?

Yes, it features an integrated latching mechanism for secure connection retention.

What is the contact plating specification?

The contacts utilize a selective gold over tin finish for enhanced conductivity and corrosion resistance.
