M80-8280842

Overview

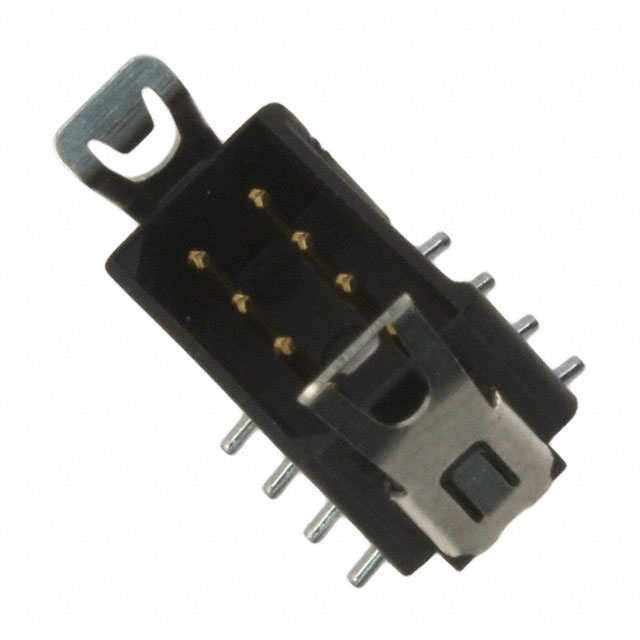

The M80-8280842 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 2-row configuration with 8 positions and a 2 mm (0.079 inch) mating pitch. Designed for surface mount installation, this right-angle plug utilizes phosphor bronze contacts with gold plating for reliable signal transmission. The housing is constructed from black, glass-filled PPS material rated UL94 V-0. It supports board-to-board or wire-to-board applications within an operating temperature range of -55°C to 125°C.

Feature Summary

• Right-angle surface mount design facilitates compact vertical integration on PCBs.
• Datamate L-Tek system provides secure friction lock engagement for stable connections.
• Four-wall shielding enhances environmental protection against dust and debris.
• Gold-plated circular pins ensure consistent conductivity and corrosion resistance.

Applications

• Board-to-board interconnects in industrial control systems
• Wire-to-board connections in medical electronic equipment
• Data and operation links in metering and measurement devices
• Reliable connections for UAV camera modules

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm orientation and locking mechanisms. Ensure compatibility with mating female connectors from the same Datamate L-Tek family. Check for RoHS compliance status as manufacturing updates may occur. Confirm surface mount pad layout matches your PCB design requirements before finalizing procurement orders.

Selection Notes

Select this model when a right-angle surface mount profile is required for space-constrained designs. The 2 mm pitch suits moderate density routing needs. Consider the 3A current rating for power distribution tasks. Verify that the friction lock mechanism meets the mechanical retention requirements of the assembly environment without additional screw fasteners.

Part Context

This component belongs to the Datamate L-Tek product line, which focuses on rugged, high-reliability interconnect solutions. The series is engineered for harsh environments including defense, aerospace, and industrial sectors. It complements other variants in the M80 series offering different row counts, pitches, and mounting styles for versatile system integration.

Replacement Considerations

M80-8280642
