Product Detailed Parameters
- Description：CONN HEADER SMD 10POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

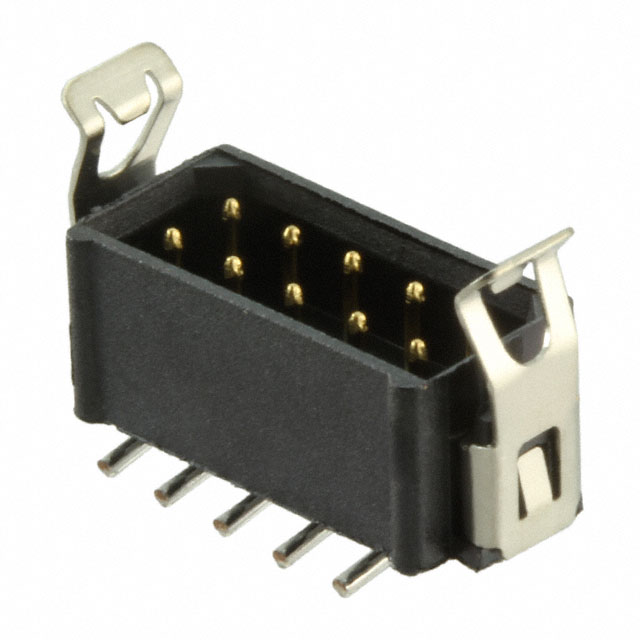

The Harwin M80-8281022 is a Datamate L-Tek header and wire housing featuring 5+5 positions with a vertical male latch design. It utilizes four-finger beryllium copper contact technology for high reliability. The component is tin-plated and designed for robust connections in demanding environments.
Feature Summary
- High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss
- Vertical male latch design provides secure mating
- Tin-plated contacts offer corrosion resistance
Applications
- Demanding industrial applications requiring high reliability
- Environments subject to shock, vibration, and acceleration
- Harsh operating conditions where connection integrity is critical
Procurement Notes
Verify the specific pin configuration and plating requirements against your design specifications before procurement. Confirm availability status as this component may be subject to supply constraints or end-of-life notifications. Ensure compatibility with mating connectors within the Datamate L-Tek series.
Selection Notes
Select this component when high mechanical stability and reliable electrical performance are required in vertical board-to-board or cable-to-board configurations. Consider the four-finger contact design for superior retention force compared to standard contacts. Evaluate environmental factors such as temperature and vibration to ensure suitability.
Part Context
This part belongs to the Datamate L-Tek series by Harwin Inc., known for durability in harsh environments. The series features high-reliability contacts capable of withstanding high mating cycles. It is suitable for applications requiring robust interconnect solutions under severe mechanical stress.
Replacement Considerations
M80-8260642 is listed as a similar replacement option from Harwin Inc. Verify functional equivalence and physical dimensions before substitution.
FAQ
What type of contact technology does the M80-8281022 use?
It uses Harwin's high-reliability four-finger beryllium copper contact technology.
Is the M80-8281022 designed for vertical mounting?
Yes, it is a vertical male latch type connector.
