Product Detailed Parameters
- Description：CONN HEADER SMD 14POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Pick and Place
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

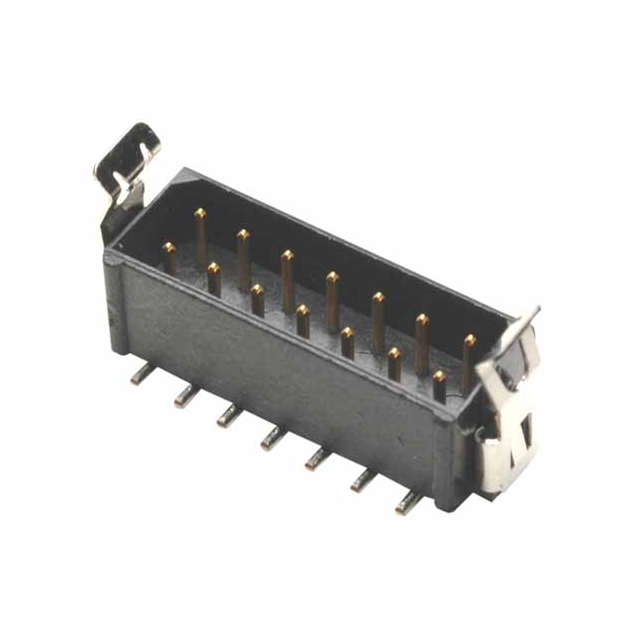

The M80-8281442P is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 14-position, dual-row configuration with a 2.00mm (0.079 inch) mating pitch and a 2.00mm row spacing. Designed for surface-mount technology, it utilizes solder pin termination. The contacts are made of phosphor bronze with gold plating, while the housing is black polyphenylene sulfide (PPS) reinforced with glass fiber. Rated for 800V and 2.2A, it operates within a temperature range of -55°C to +125°C and meets UL94 V-0 flammability standards.
Feature Summary
- Surface-mount design for automated PCB assembly
- Gold-plated phosphor bronze contacts for reliable conductivity
- High-temperature PPS insulation material
- Dual-row shrouded structure for secure mating
Applications
- Industrial control systems
- Automotive electronics
- Telecommunications equipment
- Medical devices
Procurement Notes
Verify the 'P' suffix in the part number M80-8281442P against official Harwin documentation to confirm specific packaging or tape-and-reel specifications. Ensure compatibility with standard SMT reflow profiles. Cross-reference the exact datasheet version to confirm current RoHS compliance status and lead times directly from the manufacturer.
Selection Notes
Select this component when a low-profile, surface-mount male header is required for high-density interconnects. The 2.00mm pitch allows for compact board layouts. Consider the 800V rating and -55°C to +125°C operating range for harsh environments. Ensure the mating socket has compatible stacking heights and locking mechanisms.
Part Context
This connector belongs to the Datamate L-Tek series, known for its robust mechanical performance and high reliability. The L-Tek line typically features latching mechanisms and shielded options. As a male header, it pairs with female sockets to create secure board-to-board or cable-to-board connections in demanding applications.
Replacement Considerations
Compatible mates include Harwin M80-4611442 and M80-4611405 female sockets. Verify that replacement headers maintain the same 2.00mm pitch and dual-row configuration. Check for identical stacking height requirements and locking features to ensure mechanical integrity.
