M80-8282642

Overview

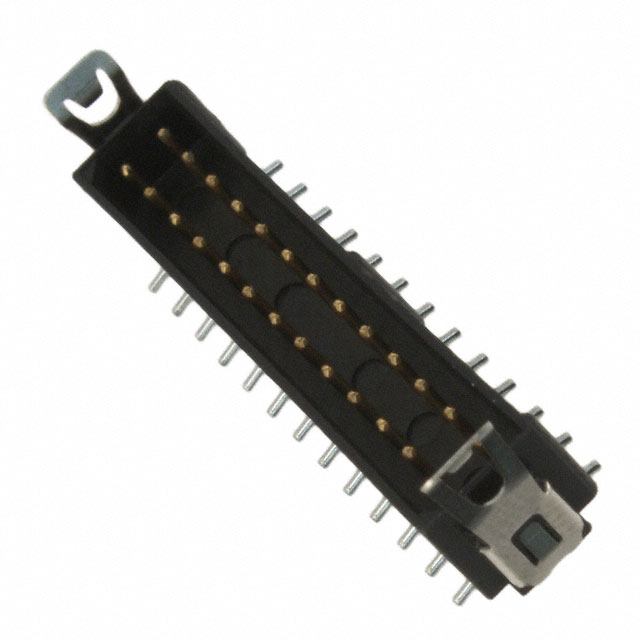

The Harwin M80-8282642 is a Datamate L-Tek series male pin header connector designed for surface mount installation. It features a 2-row configuration with 13+13 positions, totaling 26 contacts. The connector utilizes a 2 mm pitch and includes an integrated latching mechanism with jack screws for secure mating. Contact surfaces are tin/lead plated to support reliable electrical connections in wire-to-board applications.

Feature Summary

• Integrates a latching mechanism with jack screws for positive retention during board-to-board or wire-to-board connections
• Designed for surface mount technology (SMT) assembly processes
• Utilizes a shrouded housing design to ensure correct alignment and prevent misinsertion

Applications

• Wire-to-board interconnections requiring secure mechanical retention
• Board-to-board stacking applications needing aligned mating interfaces
• Industrial control modules utilizing surface mount assembly techniques

Procurement Notes

Verify the specific plating composition and compliance status against current RoHS directives before finalizing procurement orders. Confirm that the surface mount footprint matches the target PCB layout dimensions precisely. Ensure compatibility with automated pick-and-place equipment specifications for the selected component variant.

Selection Notes

Select this component when a surface mount solution with integrated mechanical locking is required. The 2 mm pitch accommodates standard density requirements while maintaining robust connection integrity. Consider the jack screw feature as essential for environments subject to vibration or thermal cycling where passive retention is insufficient.

Part Context

This part belongs to the Datamate L-Tek family, which specializes in high-reliability connectors featuring integral latching mechanisms. The series supports various termination styles including through-hole and surface mount options. The M80-8282642 specifically addresses needs for compact, vertically oriented headers with enhanced mechanical stability.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
