Product Detailed Parameters
- Description：CONN HEADER SMD 34POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.205" (5.20mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

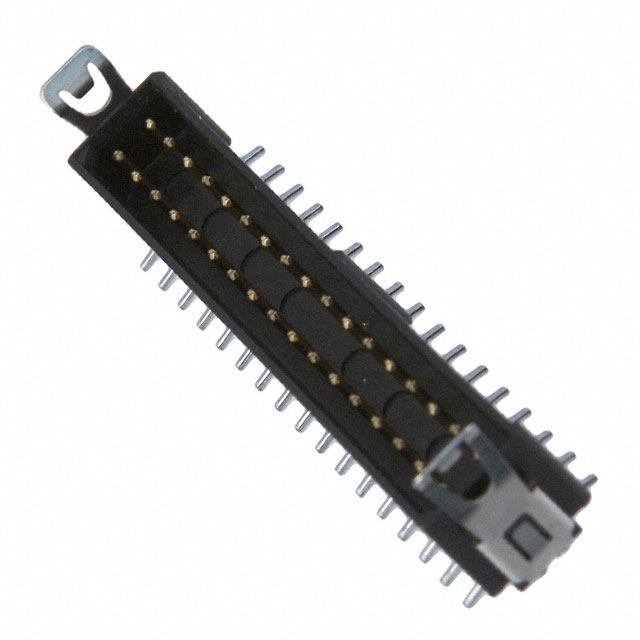

The M80-8283442 is a Datamate L-Tek pin header connector manufactured by Harwin Inc. It features a 2-row, 34-position configuration with a 2.00mm pitch. Designed for surface mount installation, this male connector utilizes solder terminals for board attachment. The contacts are constructed from phosphor bronze with tin plating on the tails and gold plating on the mating surfaces. The housing is made of black polyphenylene sulfide (PPS) reinforced with glass fiber, ensuring UL94 V-0 flammability rating. It operates within a temperature range of -55°C to +125°C.
Feature Summary
- Surface mount technology integration for automated assembly processes
- Dual-row layout providing high-density interconnect capability
- Robust PPS insulator material offering thermal stability and flame resistance
Applications
- High-density board-to-board interconnections
- Wire-to-board connections requiring surface mount headers
- Industrial control systems with space constraints
Procurement Notes
Verify the specific suffix and packaging details against the official Harwin datasheet before ordering. Confirm that the surface mount footprint matches the target PCB design. Check for any recent product change notices or end-of-life announcements directly from the manufacturer. Ensure compatibility with standard reflow soldering profiles for tin-plated terminals.
Selection Notes
Select this component when a high-pin-count, low-profile connection is required for surface mount applications. The 2.00mm pitch allows for dense routing while maintaining adequate spacing. Consider the mechanical strength provided by the surface mount pads versus through-hole options. Evaluate the current carrying capacity requirements against the 2.2A per contact rating specified for the series.
Part Context
This part belongs to the Datamate L-Tek series, which is designed for compact, reliable interconnect solutions. The M80-8283442 specifically addresses the need for vertical mounting in space-constrained environments. It complements female sockets and cable assemblies within the same ecosystem to form complete connectivity systems.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference with other Harwin M80 series variants if pin count or row configuration differs. Verify mechanical dimensions and terminal plating compatibility before considering alternative suppliers.
