Product Detailed Parameters

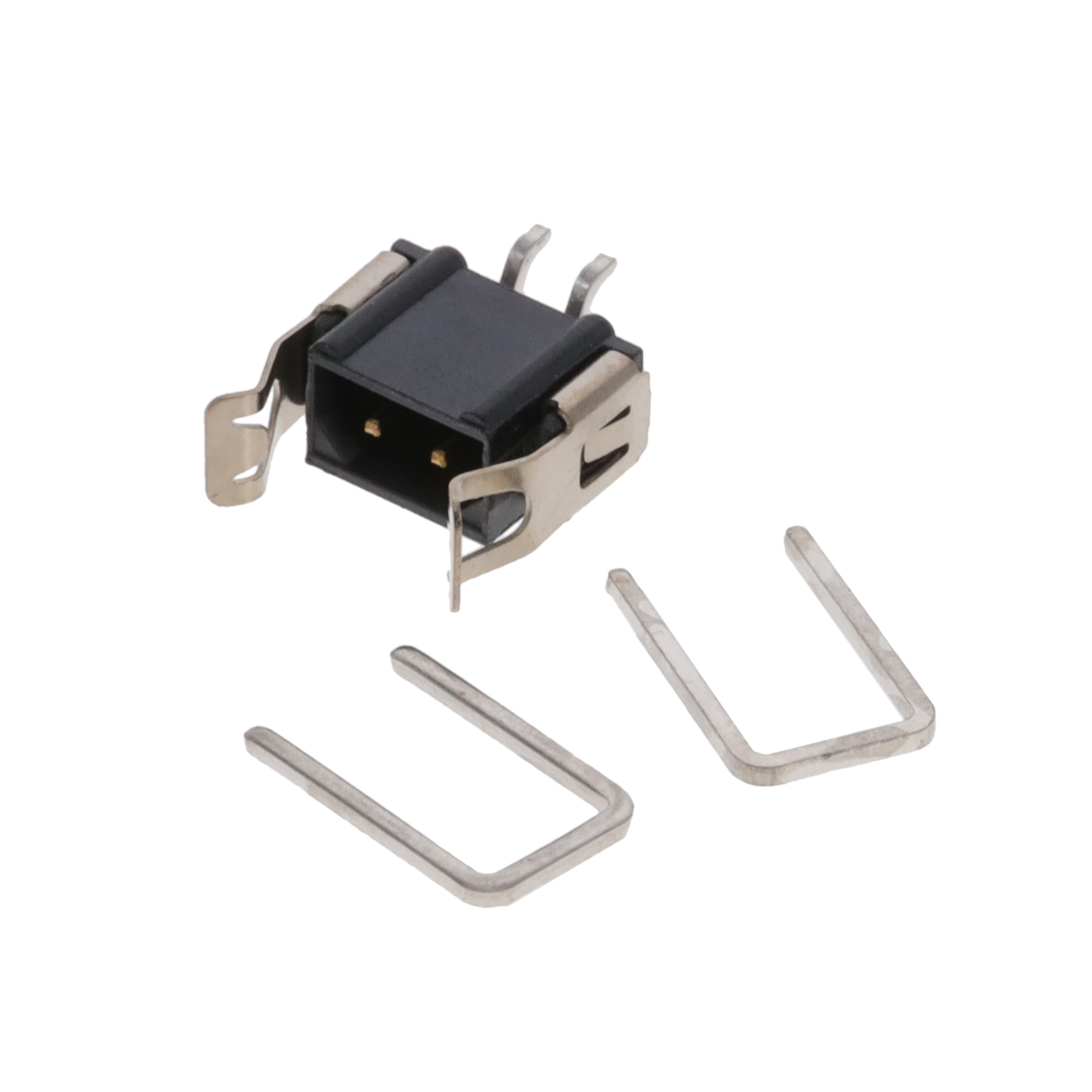

- Description：CONN HEADER SMD R/A 2POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.157" (4.00mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Brass
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A per Contact
- Voltage Rating：800V
Download product information
Overview
The Harwin M80-8360222 is a male pin header from the Datamate Mix-Tek series, designed for free-hanging cable applications. It features a 2x11 configuration with 22 positions and a 2.00mm pitch. The connector utilizes crimp termination for 24-28 AWG wires. Contacts are gold-plated phosphor bronze with a post-plating thickness of 11.8µin (0.30µm). It supports a current rating of 2.2A per contact and a voltage rating of 800V. The housing is black polyphenylene sulfide.
Feature Summary
- High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss.
- Datamate Mix-Tek series design provides robust performance in demanding environments.
- Gold-plated contacts offer superior corrosion resistance and low contact resistance.
Applications
- Free-hanging cable assemblies requiring high reliability
- Industrial control systems with strict environmental constraints
- Medical equipment connections
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required wire gauges and termination types. Confirm that the 2.2A current rating meets system requirements. Check for RoHS compliance status if restricted substances are a concern. Ensure mating connectors match the 2.00mm pitch and DIL format. Validate housing material specifications against thermal requirements.
Selection Notes
Select this component when high voltage isolation up to 800V is required alongside compact spacing. The Mix-Tek series offers a balance of density and reliability. Consider the crimp termination method for durable wire connections. Verify that the 24-28 AWG range accommodates the intended wiring harness. The free-hanging style suits applications where panel mounting is not feasible.
Part Context
This part belongs to Harwin's Datamate family, known for high-density interconnects. The Mix-Tek variant focuses on durability and signal integrity. It complements female sockets and other headers within the same pitch ecosystem. The design supports automated assembly processes for efficient manufacturing.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Cross-reference with other Datamate Mix-Tek headers only if pitch and contact count align. Verify mechanical dimensions before substitution.
