M80-8391242

Overview

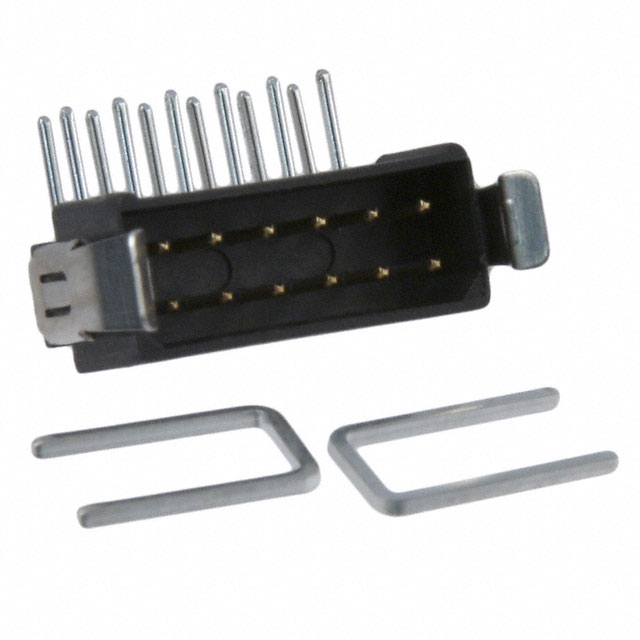

The M80-8391242 is a Datamate L-Tek series header manufactured by Harwin Inc. It features a 2 mm pitch and comprises 12 positions arranged in two rows. The connector utilizes male pin contacts with gold plating for reliable signal transmission. Designed for board-to-board or wire-to-board applications, it employs a through-hole termination method. The housing is constructed from black polyamide (PA46) material, offering UL94 V-0 flammability rating. This component supports operating temperatures ranging from -55°C to +125°C.

Feature Summary

• Datamate L-Tek series design ensures high-density interconnect capabilities
• Gold-plated phosphor bronze contacts provide durable electrical performance
• Polyamide insulation housing meets UL94 V-0 safety standards
• Through-hole termination facilitates secure PCB mounting

Applications

• Board-to-board interconnection systems
• Wire-to-board assembly configurations
• Industrial control unit interfaces
• Consumer electronics internal connections

Procurement Notes

Verify the obsolete status of this specific part number before initiating any procurement process. Confirm availability of alternative stock sources or authorized distributors capable of handling end-of-life components. Ensure that any substitute parts meet identical mechanical and electrical specifications required for the original design implementation.

Selection Notes

Select this component when a low-profile, dual-row header with a 2 mm pitch is required. Consider its through-hole mounting style and PA46 insulation material for environmental compatibility. Evaluate the 12-position count against circuit density needs. Verify temperature range suitability for the intended operational environment.

Part Context

This connector belongs to the Datamate L-Tek family, known for compact rectangular interconnect solutions. The M80 prefix indicates a standard header configuration within the Harwin portfolio. It complements matching socket housings for complete mating pairs. The series emphasizes reliability in space-constrained electronic assemblies requiring robust mechanical retention.

Replacement Considerations

• M80-8391242F2

FAQ

Is the M80-8391242 currently in production?

No, the M80-8391242 is classified as obsolete and is no longer manufactured by Harwin.

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold plating finish.
