M80-8392642

Overview

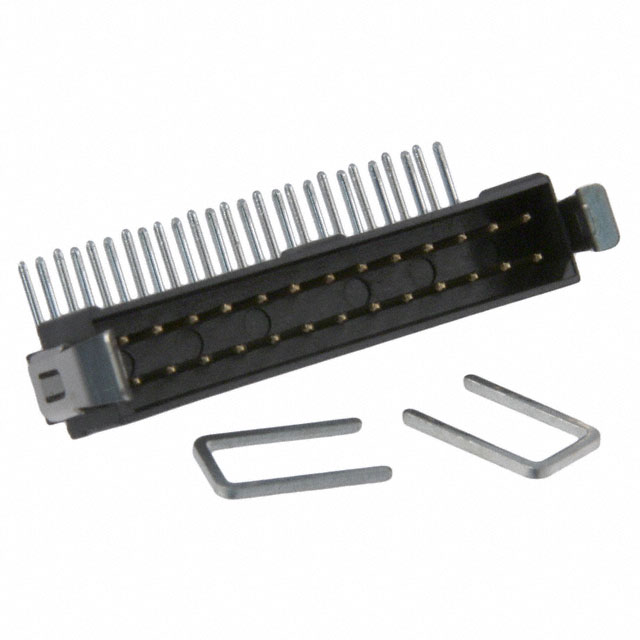

The M80-8392642 is a Datamate L-Tek header and wire housing component manufactured by Harwin. It features a 26-position, dual-in-line configuration with a 2 mm pitch across two rows. The connector utilizes right-angle male pin contacts made of phosphor bronze with gold plating. Designed for solder pin termination, it operates within a current rating of 3 A and a voltage rating of 120 V. The black thermoplastic housing ensures structural integrity.

Feature Summary

• Right-angle male pin contact configuration for board-to-board or wire-to-board connections
• Friction latch mechanism provides secure mating retention without additional hardware
• Gold-plated phosphor bronze contacts ensure reliable electrical conductivity
• Dual-in-line layout supports high-density interconnect applications

Applications

• Industrial control systems requiring robust signal transmission
• Medical equipment needing reliable interconnects in critical environments
• Metering and measurement devices demanding stable data operations
• Aviation and defense electronics subject to harsh environmental conditions

Procurement Notes

Verify the obsolete status of this specific part number before initiating procurement processes. Confirm availability through authorized distributors or check for parameter-equivalent replacements listed in official technical resources. Ensure that any substitute components match the required 2 mm pitch, 26-position count, and right-angle orientation to maintain system compatibility.

Selection Notes

Select this component when a rigid, right-angle male header with friction latch retention is required. The 2 mm pitch allows for compact circuit board layouts while maintaining adequate spacing for signal integrity. Verify that the 3 A current rating and 120 V voltage rating align with the application's electrical requirements. Consider the solder pin termination method for standard PCB assembly processes.

Part Context

This component belongs to the Datamate L-Tek series, which is designed for high-reliability interconnect solutions. The series is widely utilized in sectors such as aviation, defense, and medical industries where performance under severe vibration, shock, and temperature extremes is critical. The L-Tek line emphasizes durability and secure connection mechanisms.

Replacement Considerations

M80-8412642 is a confirmed parameter-equivalent replacement part number available from Harwin.
