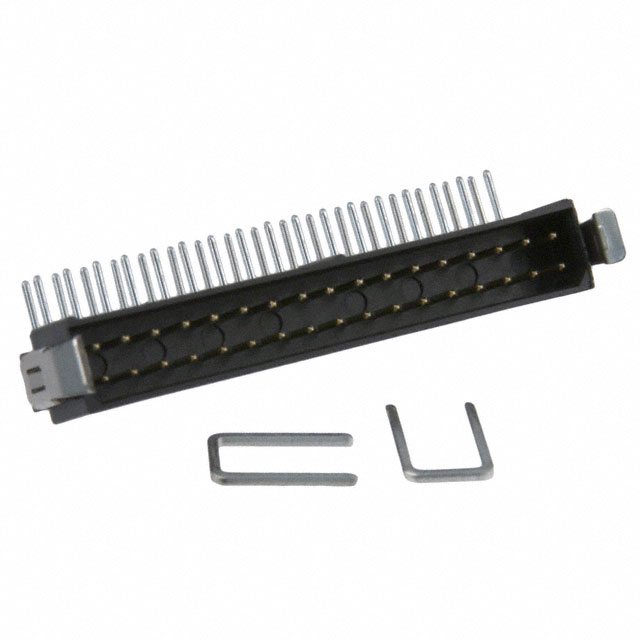

M80-8393442

Description：CONN HEADER R/A 34POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:6e5d5c348ecf Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 34POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Plug
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Friction Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.235" (5.97mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA46), Nylon 4/6
Features：Strain Relief Clips
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-8393442

Overview

The M80-8393442 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 2-row, 34-position (17+17) male pin configuration with a 2 mm pitch. Designed for through-hole mounting, this right-angle connector utilizes friction latch retention and tin-plated phosphor bronze contacts. The housing is constructed from black thermoplastic material rated UL94 V-0. It supports a maximum operating temperature of 125°C and a voltage rating of 120V.

Feature Summary

Datamate L-Tek series design with integrated friction latch mechanism
Right-angle through-hole termination for PCB assembly
Phosphor bronze contacts with tin plating for conductivity
UL94 V-0 rated black thermoplastic insulation

Applications

Industrial control systems requiring secure board-to-board connections
General purpose electronic equipment interconnects
Automotive subsystem wiring harnesses

Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm mechanical compatibility with mating sockets and PCB layout requirements before procurement. Request updated datasheets and environmental compliance documentation directly from the manufacturer or certified distributors to ensure adherence to current specifications.

Selection Notes

Evaluate the right-angle form factor against available straight-mount alternatives to optimize board space utilization. Consider the friction latch requirement versus soldered or screw-lock options for vibration resistance needs. Ensure the 2 mm pitch aligns with existing trace spacing and mating connector standards within the system architecture.

Part Context

This component belongs to the Datamate L-Tek family, characterized by robust locking mechanisms and high-density connectivity. It serves as a male header variant within the broader M80-839 series, designed specifically for applications demanding reliable mechanical retention and standardized 2 mm spacing in compact electronic assemblies.
