M80-8400245

Overview

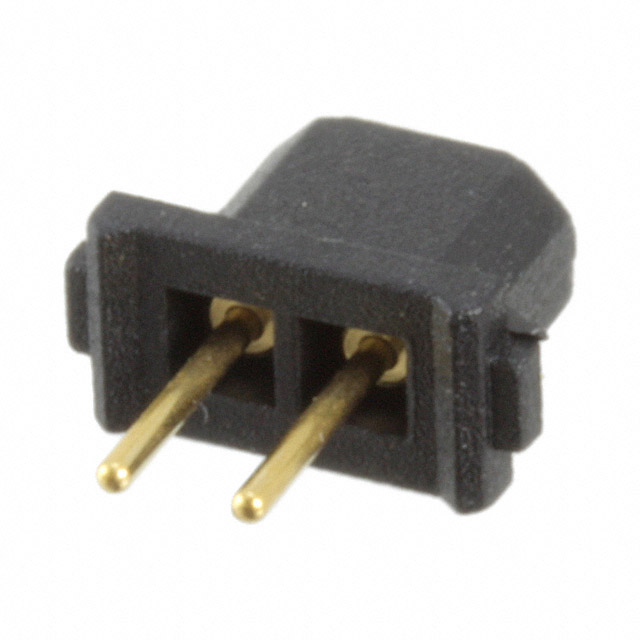

The M80-8400245 is a Datamate L-Tek header receptacle connector manufactured by Harwin Inc. It features a 2-position configuration with a 2.00mm pitch and operates within a temperature range of -55°C to +125°C. The unit utilizes phosphor bronze contacts with gold plating for mating surfaces, ensuring reliable signal transmission. Designed for through-hole mounting in a straight orientation, it supports wire-to-board applications. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, providing UL94 V-0 flammability ratings. Rated for 120V and 2.2A, this component ensures secure electrical connections in demanding environments.

Feature Summary

• High-reliability four-finger beryllium copper contact structure ensures connection integrity under vibration and shock
• Polyphenylene sulfide insulation material offers high thermal stability and mechanical strength
• Gold-plated mating surfaces provide low contact resistance and corrosion protection

Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics subject to high vibration
• Medical equipment demanding stable signal transmission

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct pin count and termination style. Confirm that the required contact plating thickness meets application standards. Check compatibility with corresponding male headers from the same Datamate L-Tek series. Ensure PCB layout accommodates the specified through-hole dimensions and straight mounting profile.

Selection Notes

Select this model when a compact 2-position female connector is needed for board-level interconnections. Consider the Datamate L-Tek series for applications requiring high durability and resistance to environmental stressors. Evaluate the 2.00mm pitch against available board space constraints. Verify that the operating voltage and current ratings align with system requirements.

Part Context

This component belongs to the Datamate L-Tek family, known for its rugged design and suitability for harsh environments. The M80 series represents a standard line of connectors offering various configurations. This specific part serves as a receptacle for mating with compatible male pins, forming a secure link in electronic assemblies.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek receptacles with matching 2-position layouts and 2.00mm pitch. Ensure any replacement maintains the same through-hole mounting style and straight orientation. Verify that alternative parts share identical contact materials and plating specifications for interchangeability.
