M80-8400345

Overview

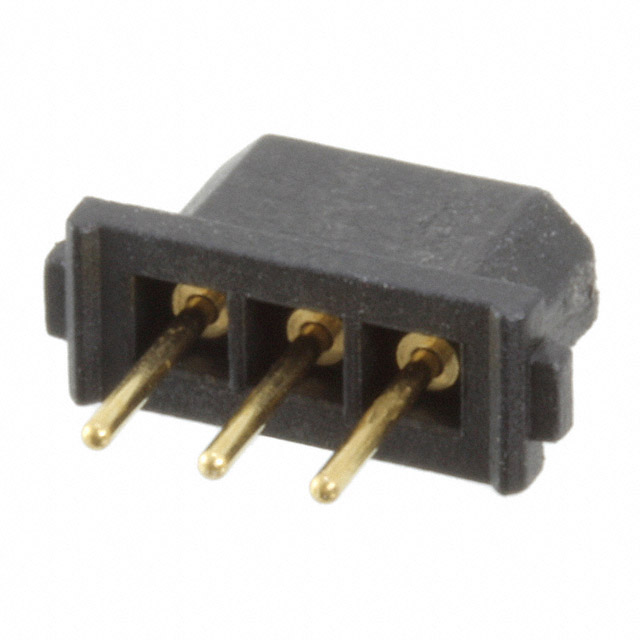

The M80-8400345 is a 3-position female receptacle connector from the Harwin Datamate SIL series. It features a 2.00mm (0.079 inch) pitch and utilizes vertical PCB tail termination for surface mount installation. The contacts are gold-plated to ensure reliable signal transmission, while the housing is constructed from durable insulating materials suitable for electronic interconnect applications.

Feature Summary

• Vertical PCB tail design facilitates compact surface mount integration
• Gold-plated contacts provide corrosion resistance and stable conductivity
• Datamate SIL series architecture ensures high-density connectivity

Applications

• Compact electronic device interconnects
• Surface mount circuit board assemblies
• High-density signal routing systems

Procurement Notes

Verify the specific Datamate SIL variant against official datasheets to confirm pin configuration and orientation. Ensure compatibility with automated surface mount placement equipment. Cross-reference the manufacturer part number to distinguish between standard and specialized packaging options available through authorized channels.

Selection Notes

Select this component when vertical space constraints require a low-profile surface mount solution. The 2.00mm pitch offers a balance between density and manufacturability. Confirm that the vertical tail geometry aligns with the target PCB layout and soldering profile requirements for reliable joint formation.

Part Context

This connector belongs to the Datamate SIL family, designed specifically for space-saving vertical mounting on printed circuit boards. The series is characterized by its robust locking mechanisms and high mating cycle durability, making it suitable for demanding industrial and commercial electronics where reliability in small form factors is critical.
