M80-8400642

Overview

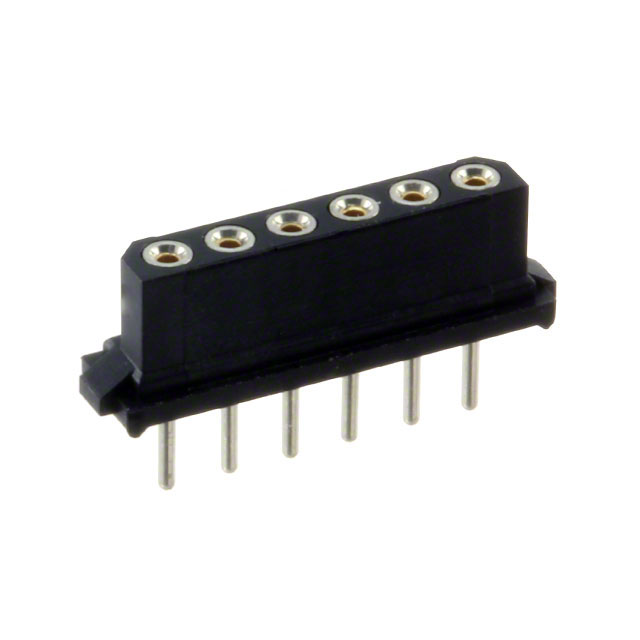

The Harwin M80-8400642 is a 6-position receptacle connector from the Datamate L-Tek series. It features a 2.00mm pitch and utilizes gold-plated phosphor bronze contacts housed in black polyphenylene sulfide (PPS). Designed for through-hole surface mounting, this female socket connector supports a maximum voltage of 120V and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Fully shrouded contact design ensures polarized mating and prevents misalignment during insertion.
• Gold-plated phosphor bronze contacts provide reliable electrical conductivity and corrosion resistance.
• Polyphenylene sulfide housing offers high thermal stability and mechanical durability.

Applications

• Power to board interconnections
• Wire-to-board connections
• Board-to-board interfaces

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, housing material, and termination type. Ensure compatibility with mating male headers from the same Datamate L-Tek family. Confirm that the through-hole footprint matches the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a low-profile, polarized female connector is required for compact electronic assemblies. The 2.00mm pitch allows for dense circuit board layouts while maintaining adequate spacing for signal integrity. Consider the operating temperature range and voltage rating to ensure suitability for the specific environmental conditions of the application.

Part Context

This part belongs to the Datamate L-Tek series, known for its robust mechanical latching and compact form factor. The M80-8400642 specifically serves as a receptacle counterpart to male pin headers, facilitating secure connections in space-constrained industrial and consumer electronics designs requiring reliable signal or power transmission.

Replacement Considerations

M80-8400642 is currently listed as an End-of-Life product. Official substitute part numbers are not explicitly confirmed in the provided documentation. Verify availability of direct replacements or alternative series connectors with identical pin counts, pitch, and mounting styles through authorized distributors.
