M80-8400742

Overview

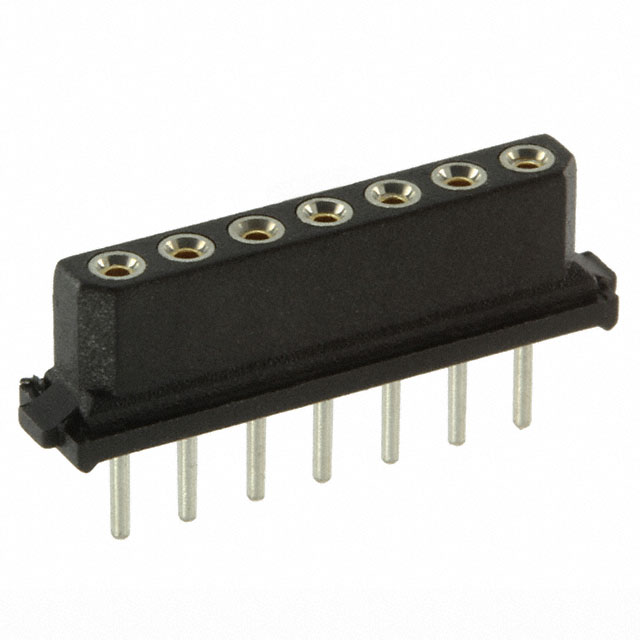

The M80-8400742 is a Datamate L-Tek series power-to-board connector manufactured by Harwin. It features a single row of seven female sockets with a 2.00mm pitch. The component utilizes through-hole vertical mounting and gold-plated contacts for reliable signal transmission. Designed for high-reliability applications, it offers resistance to shock, vibration, and extreme temperatures ranging from -55°C to 125°C.

Feature Summary

• High-reliability Datamate L-Tek design with robust mechanical stability
• Gold-plated female socket contacts ensuring consistent electrical performance
• Through-hole vertical mounting configuration for secure board integration

Applications

• Industrial control systems requiring durable interconnects
• Automotive electronics operating in extreme temperature environments
• Medical devices needing high-shock and vibration resistance

Procurement Notes

Verify the specific RoHS compliance status and lead times directly with authorized distributors or Harwin, as availability may vary. Confirm that the gold plating specification matches the application requirements. Ensure compatibility with mating male headers within the same Datamate L-Tek family. Check for any recent updates to the datasheet regarding environmental certifications or material changes before finalizing procurement orders.

Selection Notes

Select this component when a vertical, through-hole female connector is required for power or signal distribution. The 2.00mm pitch and 7-position count define the spatial constraints. Consider the gold contact finish for corrosion resistance and low contact resistance needs. Evaluate the -55°C to 125°C operating range against the environmental conditions of the target assembly to ensure long-term reliability under thermal stress.

Part Context

This part belongs to the Datamate L-Tek family, known for high-reliability interconnect solutions. It complements male headers like the M80-8430542. The series is engineered for demanding sectors including aerospace and industrial automation, offering superior performance compared to standard connectors through enhanced mechanical locking and environmental sealing capabilities.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Verify compatibility with existing male counterparts in the assembly. Cross-reference with other Harwin Datamate L-Tek female receptacles if pin count or orientation differs.
