Product Detailed Parameters
- Description：CONN RCPT 7POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：7
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.126" (3.20mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.83mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

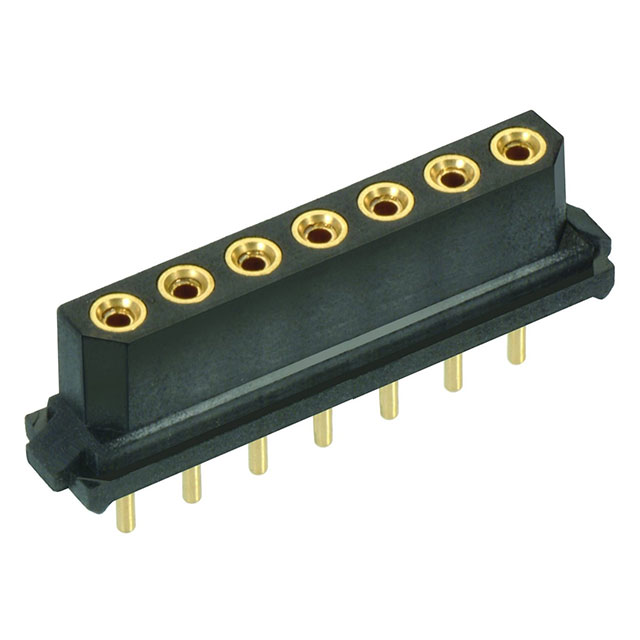

The M80-8400745 is a Datamate L-Tek series PCB receptacle connector manufactured by Harwin. It features a single row with seven female socket contacts and a 2 mm pitch. Designed for through-hole mounting, it utilizes solder pin termination. The housing is constructed from black thermoplastic material, while the contacts are made of beryllium copper with gold plating. The connector supports a voltage rating of 120 V and a current rating of 3 A. It operates within a temperature range of -55°C to +125°C.
Feature Summary
- Datamate L-Tek modular system compatibility
- Gold-plated beryllium copper contacts for reliable signal transmission
- Through-hole straight mount configuration
Applications
- Wire-to-board interconnections
- PCB header assemblies
- General electronic equipment connections
Procurement Notes
Verify the specific part number M80-8400745 against official Harwin documentation to confirm contact count, row configuration, and termination style. Ensure that the required current and voltage ratings align with the application's electrical specifications before procurement. Cross-reference the datasheet for precise mechanical dimensions and material composition details.
Selection Notes
Select this component when a single-row, seven-position female connector is required for wire-to-board applications. The 2 mm pitch and through-hole mounting style suit standard PCB layouts. Consider the 3 A current rating and 120 V voltage limit to ensure compliance with circuit requirements. Verify compatibility with mating male pins from the same Datamate L-Tek family.
Part Context
This component belongs to the Harwin Datamate L-Tek M80 series, a modular connector system designed for high-density interconnects. The series offers various configurations including headers, sockets, and cable kits. The M80-8400745 specifically serves as a vertical through-hole receptacle, providing a compact solution for board-level connections in space-constrained environments.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Consult Harwin technical support or authorized distributors for verified equivalents. Ensure any replacement matches the 2 mm pitch, 7-position count, and through-hole termination style.
