M80-8401742

Overview

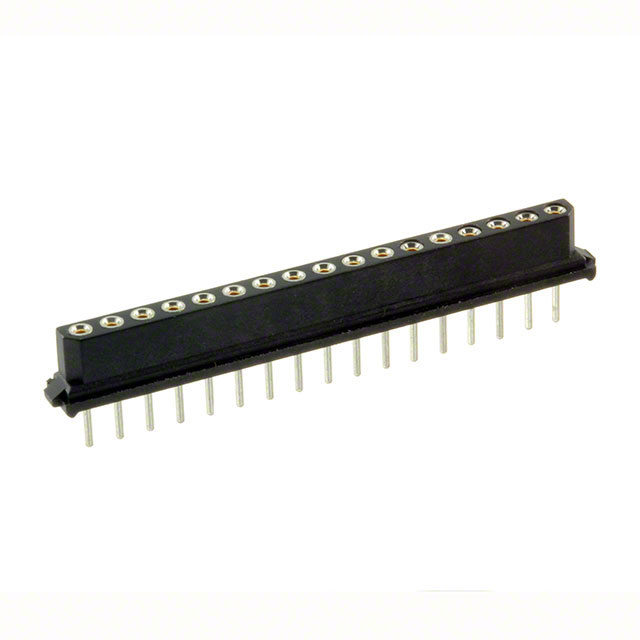

The M80-8401742 is a Datamate L-Tek series PCB receptacle manufactured by Harwin Inc. It features a single row of 17 female socket contacts with a 2.00mm pitch. Designed for through-hole vertical mounting, the connector utilizes phosphor bronze contacts with gold plating on mating surfaces and tin on tails. The housing is constructed from black, glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. Electrical ratings include 120V and 3A current capacity, supporting an operating temperature range of -55°C to +125°C.

Feature Summary

• Datamate L-Tek series design ensures high reliability and secure mating engagement.
• Four-wall shrouded housing provides comprehensive contact protection and alignment.
• Gold-plated female sockets offer superior conductivity and corrosion resistance.
• Vertical through-hole termination facilitates direct printed circuit board integration.

Applications

• Industrial control system interconnections
• Automotive electronic module connections
• General purpose board-to-board or wire-to-board assemblies

Procurement Notes

Verify the specific part number M80-8401742 against official Harwin documentation to confirm current availability status and manufacturing origin. Ensure that the required contact count, pitch, and mounting orientation match the target application requirements before finalizing procurement orders.

Selection Notes

Select this component when a single-row, vertical female receptacle with 17 positions is required. Confirm that the 2.00mm pitch and 120V/3A electrical ratings are sufficient for the intended circuit loads. Verify compatibility with corresponding male headers within the Datamate L-Tek ecosystem.

Part Context

This component belongs to the Datamate L-Tek family, known for robust performance in demanding environments. The M80-8401742 specifically serves as a vertical receptacle counterpart to male headers, providing reliable signal and power transmission in compact electronic designs requiring high-density interconnects.

Replacement Considerations

Consult official Harwin documentation for confirmed substitute part numbers. Generic equivalents may not guarantee mechanical or electrical compatibility with the Datamate L-Tek system specifications.

FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze, ensuring durability and consistent electrical performance.

Is the connector polarized?

Yes, the Datamate L-Tek series includes keying options to prevent incorrect mating orientations.
