M80-8410642

Overview

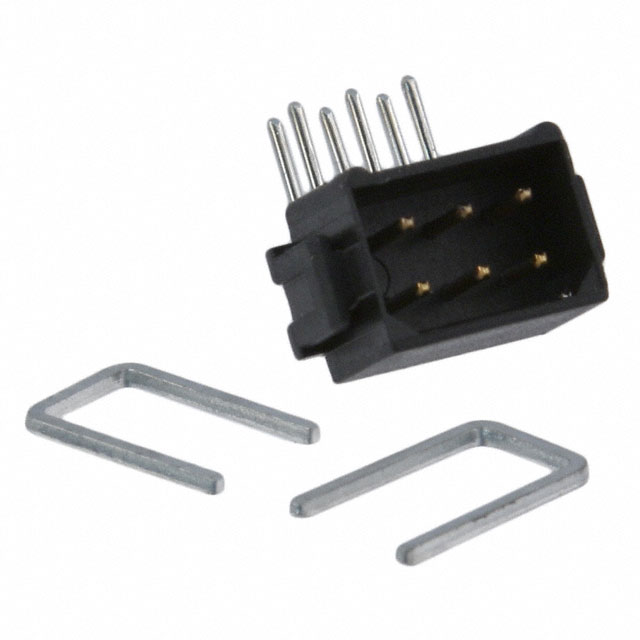

The M80-8410642 is a Datamate L-Tek series board connector header manufactured by Harwin Inc. It features a vertical, right-angle through-hole mounting style with six male pins arranged in a dual in-line (DIL) configuration. The connector utilizes a 2.00mm pitch and includes a friction latch mechanism for secure mating. Electrical ratings include a current capacity of 2.2A to 3A and a voltage rating of 120V. The housing is constructed from black thermoplastic or glass-filled PPS with UL94 V-0 flammability rating. Contact surfaces are tin-plated, and the operating temperature range spans from -55°C to 125°C.

Feature Summary

• Right-angle vertical design for compact board-to-board or cable connections
• Friction latch system ensures secure mechanical retention during operation
• Dual in-line male pin configuration with standardized 2.00mm spacing
• High-temperature resistant insulation material suitable for harsh environments

Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules with space constraints
• Telecommunications equipment backplanes
• Consumer appliance mainboards

Procurement Notes

Verify the specific datasheet revision for the M80-8410642 to confirm exact current ratings, as sources indicate variations between 2.2A and 3A. Ensure compatibility with mating sockets from the same Datamate L-Tek family. Check for end-of-life status or obsolescence notifications prior to finalizing procurement plans, as availability may be limited.

Selection Notes

Select this component when a right-angle male header with latching capability is required. The 6-position count fits applications needing moderate I/O density. Confirm that the tin plating meets corrosion resistance requirements for the intended environment. Validate that the 120V rating aligns with the system's electrical safety standards.

Part Context

This part belongs to Harwin’s Datamate L-Tek line, known for high-density connectivity solutions. It serves as a male counterpart to female socket connectors within the same series. The right-angle form factor distinguishes it from standard vertical headers, allowing for different PCB layout orientations while maintaining the same electrical performance characteristics.

Replacement Considerations

M80-8520642 is listed as a potential substitute part number for related 6-position variants within the Harwin ecosystem. Verify mechanical dimensions and latching mechanisms before substitution to ensure fitment.
