M80-8410842

Overview

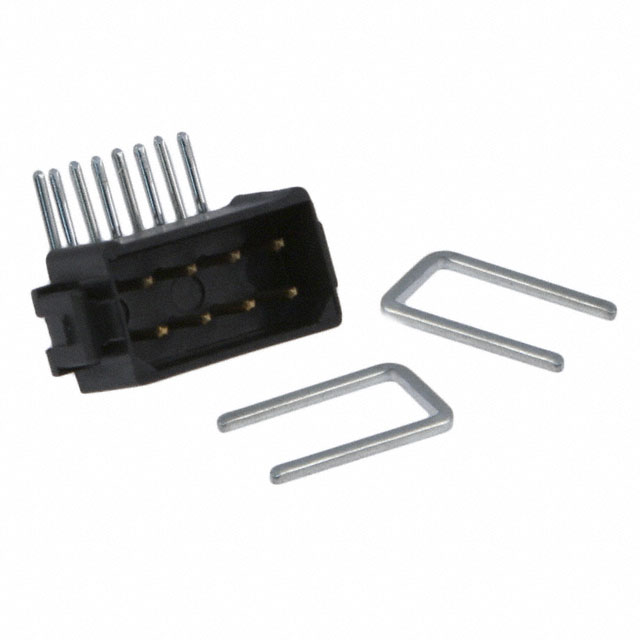

The Harwin M80-8410842 is a Datamate L-Tek series PCB header featuring 8 contacts in a double-row configuration. It utilizes a 2mm pitch and operates at 120V with a 3A current rating. The connector employs phosphor bronze pins with gold plating, housed in PPS material rated UL94 V-0. Designed for through-hole right-angle mounting, it supports board-to-board and wire-to-board systems within an operating temperature range of -55°C to 125°C.

Feature Summary

• High-reliability four-finger beryllium copper contact design ensures connection integrity under shock and vibration
• Shrouded housing provides protection against misalignment during mating
• Durable construction withstands high mating cycles without performance degradation

Applications

• Automotive electronics
• Military equipment
• General industrial applications

Procurement Notes

Verify the specific part number M80-8410842 against official Harwin documentation to confirm the double-row configuration and 2mm pitch specifications. Ensure compatibility with mating receptacles from the same Datamate L-Tek family. Cross-reference technical datasheets for precise mechanical dimensions and thermal ratings before integration into final designs.

Selection Notes

Select this component when a robust, shrouded double-row header is required for harsh environments. The Datamate L-Tek series offers superior durability compared to standard connectors. Consider the 2mm pitch and 120V rating to ensure alignment with system electrical requirements and spatial constraints on the printed circuit board layout.

Part Context

This component belongs to the Datamate L-Tek product line, engineered for safety-critical and high-load applications. The series is characterized by its ability to maintain performance in恶劣 (harsh) conditions involving significant acceleration and shock. It serves as a reliable interconnection solution where long-term stability and physical resilience are paramount.

Replacement Considerations

Compatible substitutes include other Harwin M80-841 variants with matching pin counts and pitches. Verify that alternative parts retain the double-row structure and shrouded design to ensure mechanical interchangeability and proper mating interface alignment.

FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with gold plating.

Does this connector feature a locking mechanism?

Yes, the Datamate L-Tek series includes secure latching features for reliable retention.
