Overview

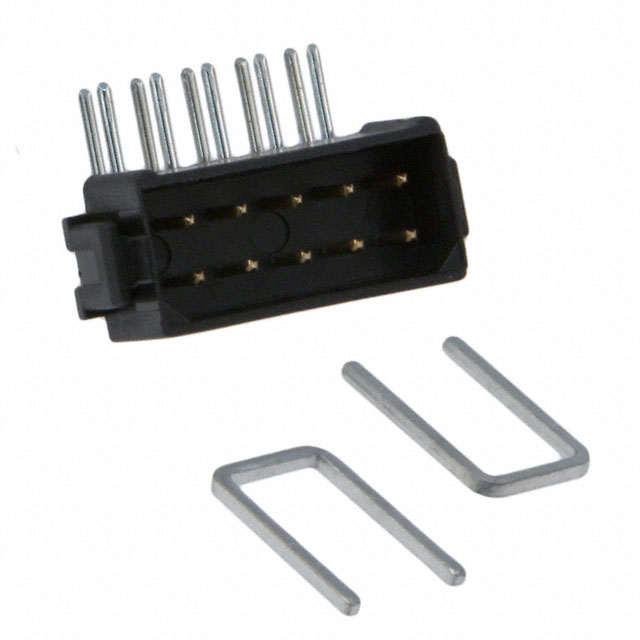

The M80-8411042 is a Datamate L-Tek series male pin header connector manufactured by Harwin Inc. It features a 10-position, dual-row configuration with a 2.00mm (0.079 inch) pitch. Designed for right-angle through-hole mounting, it utilizes beryllium copper contacts with gold plating on the mating interface and tin plating on the tail pins. The housing is constructed from black, glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. The connector supports a maximum current of 2.2A at 120V and operates within a temperature range of -55°C to 125°C.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss.
• Integrated latcher socket mechanism provides secure mechanical retention during mating.
• Stress relief clamp design protects cable connections against mechanical strain.

Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial control systems requiring high reliability

Procurement Notes

Verify the specific part number M80-8411042 against official Harwin documentation to confirm the right-angle orientation and through-hole termination type. Ensure compatibility with the corresponding female receptacle in the Datamate L-Tek family. Confirm that the required current rating of 2.2A and voltage rating of 120V meet the application's electrical specifications before procurement.

Selection Notes

Select this component when a right-angle male header is required for space-constrained PCB layouts. The 2.00mm pitch allows for dense packing while maintaining robust electrical performance. Consider the PPS material and UL94 V-0 rating if flame resistance and thermal stability are critical for the assembly environment.

Part Context

This component belongs to the Datamate L-Tek family, which is characterized by its high-density interconnect capabilities and rugged mechanical design. The series is widely used in applications demanding reliable signal and power transmission in compact form factors, leveraging Harwin's proprietary contact technology for long-term durability.

Replacement Considerations

Compatible substitutes include other 10-position, 2.00mm pitch, right-angle male headers from the Datamate L-Tek series, such as M80-8411045 or M80-8411046, provided they match the specific plating and housing requirements.

FAQ

What is the contact material used in the M80-8411042?

The contacts are made from beryllium copper, utilizing Harwin's four-finger technology for enhanced reliability.

Is the connector suitable for wire-to-board applications?

Yes, the M80-8411042 is designed for both board-to-board and wire-to-board interconnections.
